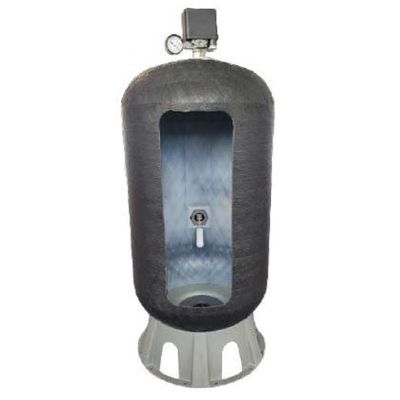

Compose It - Model RE-H -Bladderless Hydrophore Tank Usage With A Borehole Pump

Min temperature in use 1°C, Max temperature in use 50°C. Maximal working pressure 6 bar (8 bar option available).

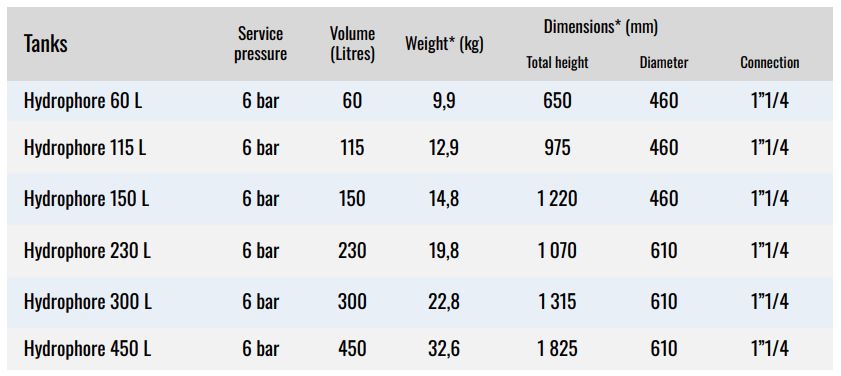

* Dimensions and weight can be altered without prior notice

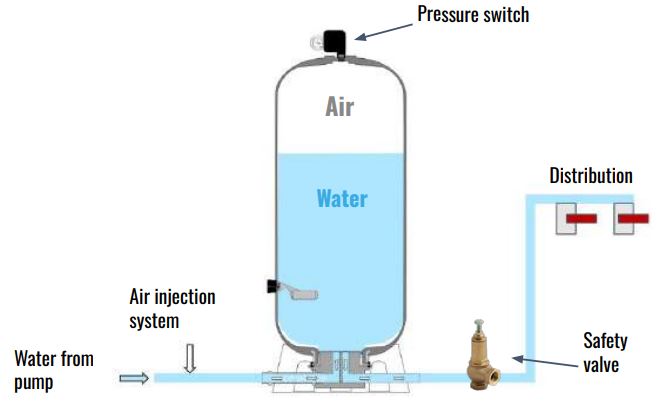

• The tank shall be connected to the network using a flexible hose
• The tank shall only be moved / handled when water has been removed
• It is required to inject enough air inside the tank with the water (valve, Venturi, compressor)

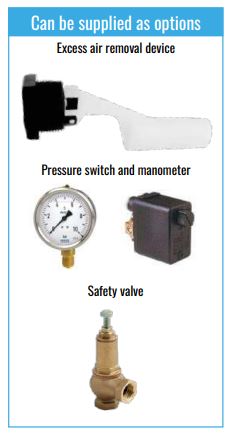

• A device to evacuate excess of air is required in the sidehole - example PULSAIR 4
• The tank pressure can be preset using a compressor and a T connection under the pressure switch
• A safety valve is required to protect from excessive pressure
