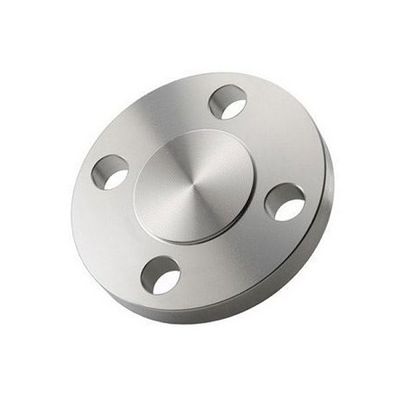

WSA - Blind Flange
Western Steel Agency is one of the most leading Blind Flanges Manufacturer in Mumbai, India. ASTM A182 Blind Pipe Flanges manufacturer with precision and high-quality raw materials Blind Flanges Manufacturers products are designed and developed in accordance with international quality standards. One of our popular products in the Metal Market is Raised Face Blind Flanges We are an ISO 9001:2008 certified company with existence in the Metal Market since 2007. We are offering market-leading prices on ANSI B 16.5 to all our customers, with a stock of standard, grades, sizes, and types available for immediate delivery worldwide.
ANSI B 16.5, ASME B 16.47, ASTM A182 Blind Pipe Flanges & Raised Face Blind Flanges Manufacturer & Exporter in India
We are the Blind Flanges Manufacturer in Mumbai, India. The performance and Dependability of the leading Stockholder, Manufacturer, Supplier, Importer, and Exporter in India. UNS N06601 Flanges products are mainly designed to control and help the flow of liquids, gases, or other materials. We offer different types of flanges such as Threaded Flanges, Weld Neck Flanges, Socket Weld Flanges and many more.
Specifications for Blind Flanges are mentioned below. If any of the specifications are not mentioned here, please get in touch with us
- Size : ½” (15 NB) to 48″ (1200NB)
- Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- Standards : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
- DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
- B.S : BS4504 , BS4504, BS1560, BS10
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
- Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
- Outside Diameter : ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
- Diameter of Contact Face :
- 1.6 mm Raised Face = ± 0.8 mm
- 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
- Diameter of Counterbore : Same as for Inside Diameter
- Thickness : ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0
- Inside Diameter : ≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
- Outside Diameter of Hub : ≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
- Drilling :
- Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
- Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
- Length thru Hub : ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
