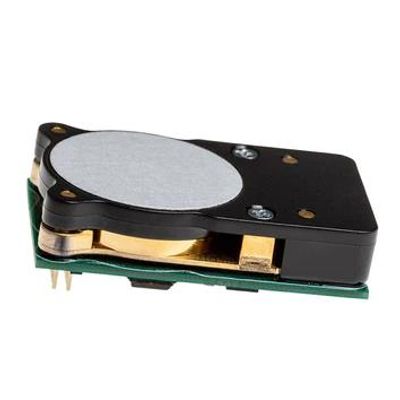

CozIR - Model GC-0035 -Blink Sensor

The GC-0035 or CozIR®-Blink Sensor enables the user to customize how much energy is spent on each sensor measurement allowing them full control of energy trade-offs for ultra-low power environments and applications.

The sensor`s extremely low power consumption makes it ideal for easy integration in battery-powered systems, IoT smart technologies, portable, and self-powered monitoring applications.

Models

GC-0035 CozIR®-Blink Sensor – designed as a solid-state technology that enables best-in-class power consumption, durability, and lifespan.

• Measures up to 1% CO2 concentration
• Solid-state, no moving parts, no heated filaments
• Vibration and shock-resistant, non-heating
• Digital (UART) and I2C Output
• Extremely low power and energy consumption (32 mJ per measurement)
• Compact size, for easy instrumentation integration
• Long lifespan, low maintenance
• RoHS compliant
• Ideal for wireless, portable, wearable and self-powered systems
• Supports energy-efficient smart home environments
• Easily integrates into applications such as IAQ, HVAC, Building Automation, Instrumentation, Agriculture, MAP, Automotive, Aerospace, and Safety.

• CO2 Measurement: Patented Solid-state NDIR absorption
• Sample Method: Diffusion
• Measurement Range: 0-2,000 ppm, 0-5000 ppm, 0-1%
• Accuracy: ± (45 ppm+3% of reading)
• Resolution: 1ppm
• Calibration: Auto calibration
• Pressure dependence: 0.15% of reading per mbar in normal atmospheric conditions
• Operating pressure range: 500mbar – 10 bar
• Response time: 30 secs - 3 mins
• Sensor Life Expectancy > 15 years

Electrical/Mechanical

• Power Input: 3.25 to 5.5V (3.3V recommended)
• Power Consumption: User driven dependent on samples per measurement
• Connector: 2 x 6-way 1.27mm header
• Communication: UART, I2C

Warranty

• 90 days - See CO2Meter Terms and Conditions.
