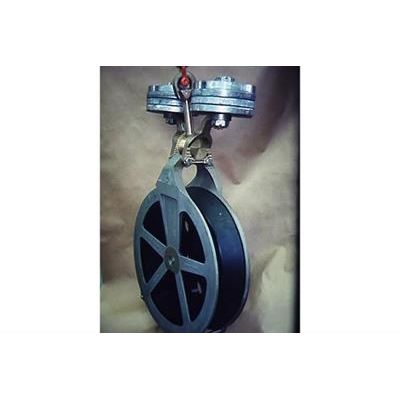

General Oceanics - Model 4041-1W -Block Nylatron Counterbalanced, 1M, Wide Sheave

BLOCK NYLATRON COUNTERBALANCED,1M, WIDE SHEAVE sheave Diameter .32m (12.5")Bending radius .16m (6.26")

LIGHT DUTY, WIDE SHEAVE, LOAD RATING OF 6,600 lbs. BENDING RADIUS 6.26" (15.9cm).

• Increase Wire Rope Endurance Life
• Reduce Weight
• Corrosion Resistant

NYLATRON sheaves reduce crown and cable wear. Weight is one seventh (1/7) the weight of equivalent sized sheaves. NYLATRON is a high strength cast nylon containing fine particles of molybdenum disulfide (MoS2), a solid lubricant; the increased lubricity aids in extending cable life.

COUNTERBALANCING keeps the sheave coplanar with the cable regardless of ship roll, pitch, and yaw under trawling/towing operations.

Available configurations: Counterbalanced, fairlead (non-counterbalanced) for reduced overall weight and height. Instrumented blocks to provide remote reading of cable payout and rate.

Available sizes: .5M, 1M, 1.5M, 2M (sheave circumference)
