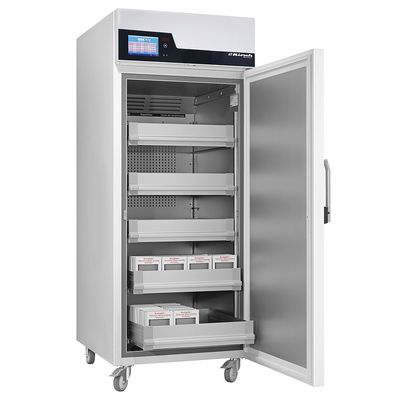

Ultimate Froster - Model BL 730 -Blood Plasma Freezer
Selected models can be fitted with a water-cooled refrigeration machine on request. The generated heat gets derived into a cold water cycle, which is already installed in the device. This provides thermal relief in the installation room.
Most popular related searches
blood plasma freezer
plasma freezer
digital temperature controller
water cycle
water cooling
water cooling machine
alarm transmission
water evaporator
temperature regulator
cooling water
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors - Touch-Display, elegant glass design, capacitive
- Access control with a log
- Graphical display of the temperature curve and min/max temperature
- 5 aluminium drawers
- Castors
- Full extension drawer
- Comfort controller
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Digital data documentation via PC-KIT-NET oder USB interface and software KIRSCH Datanet
- Potential free contact for alarm transmission
- Lockable door
- Additional drawer made of aluminium
- Adjustable feet to compensate for uneven floors.
- Length and cross dividers
- Drawer made of stainless steel instead of aluminium
- Drawer insert/dividers for stainless steel drawer
- Shelf 59,7 x 65 cm with mounting brackets or rails
- Baskets with rails 60 x 65 x 10 cm
- Aluminium tray with rails 60 x 65 x 2,5 cm
- Outer housing in stainless steel 4301, brushed
- Capacity 700 l
- Temperature setting -32°C
- Voltage 220 - 240 V
- Frequency 50 Hz
- Power consumption 790 Watts
- Normal consumption 11,1 KWh / 24 h
- Overall dimensions incl. distance from wall 77 x 98 x 195,5 (w x d x h in cm)
- Interior dimensions 62 x 77 x 140 (w x d x h in cm)
- Overall dimensions with door open at 90° 77 x 166 (w x d in cm)
- Drawer inner dimensions 56 x 60 x 10 (w x d x h in cm)
- Loading capacity per drawer 50 kg
- Weight 202 kg / 237 kg (net / gross)
