These chambers are used in particular for evaluating the effects of dust-laden environments per the above standards. These chambers are utilized in several industries and applications such as for Military & Defense, Automotive, Computer Systems, Optics and Displays, Materiel, Coatings, Solar Energy, etc.

Interior of Chamber is specially made from non-magnetic stainless steel
The Dust collection section is located just below the test compartment.
The air velocity for the generation of dust is controlled by a dust blowing mechanism that includes a Motor/Blower combination
A viewing window with a manually controlled wiper is included in all standard models.
One standard shelf for placing test specimens is included. Additional options are available.
Temperature Control & Display Unit
Humidity Control & Display Unit
Wind Speed Control & Display Unit
Dust Concentration Control & Display Unit
Data Monitoring & Recording for Temperature, Humidity, Wind and Dust. Concentration data can be monitored and recorded in real time. The saved data can be later displayed and printed.
High pressure circle air fan & Wind speed (1.0 to 10 m/s) generator attached with wind speed adjustor.
Dust Adjustment Device to adjust dust volume
Automatic dry air handling system (does not include compressed air)
Manually rotatable 300mm table for moving test specimens inside the dust chamber

Temp. Range +23 °C to +70 °C
Humid. Range
Air Speed 1.0 to 10.0 m/s
Dust Consistency Range 3.0 to 17.6 g/m³ (min.)
(17.6 ± 7 g/m³)
Interior Dimension 1000W x 800H x 800D mm
Exterior Dimensions 4200W x 2200H x 1600D mm
Door 1100 x 900 mm
Observation Window 600 x 600 mm
Power Source 440VAC/60Hz/70A/45KW

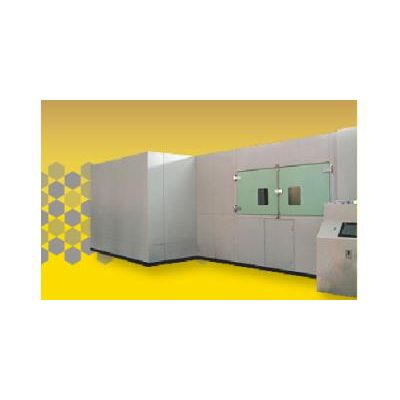

Hastest - Model H-DTD-640 -Blowing Dust Test Chamber

Product Details

Features

Specification
