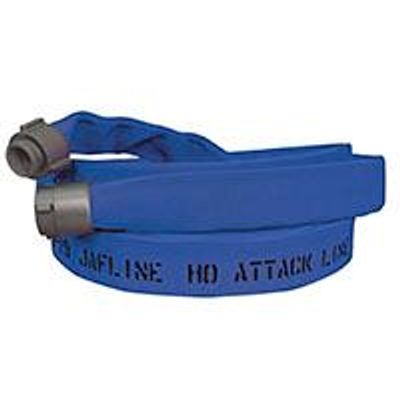

Kuriyama Jafline - Model OROFLEX 30 -Blue Double-Jacket Fire Hose

General Applications

• Municipal fire departments
• Industrial fire brigades
• Shipboard fire fighting

Construction: Double-jacket construction: Jafline® HD™ is an all polyester double-jacket hose with an EPDM rubber ozone resistant lining.

Service Temperature:  All-weather performance: Retains pliability to -40 ºF (-40 ºC).

• High Burst Rating - 1,200 psi up to 3" diameter.
• Superior Performance -Very low friction loss.
• Maintenance Free - Immune to mildew and rot.
• Coated for Better Durability - All colored hose is impregnated with our tough heat-set polymer coating for the best abrasion resistance.
• Available in blue, green, black, orange, purple, red, tan, white and yellow.
• Meets or exceeds National Fire Protection Association (NFPA) 1961 Standard on Fire Hose (current edition).
• 10-year warranty.

Nominal Specifications

• Size: 1 1/2 in
• Color: Blue
• Coupling Size: 1 1/2 in
• Coupling Type: NST
• Bowl Size: 1 15/16 in
• Service Test: 400 psi
• Proof Test: 800 psi
• Burst Test: 1200 psi
• Available Lengths: 25 ft
• Weight Uncoupled: 0.32 lbs/ft

Specifications

• Brand: Kuriyama
• Type: Fire Hose
• Material: Polyester
• Warranty: 10 y
• Industry Standards: Meets or exceeds National Fire Protection Association (NFPA) 1961
