Yosemitech Technologies Co., Ltd.

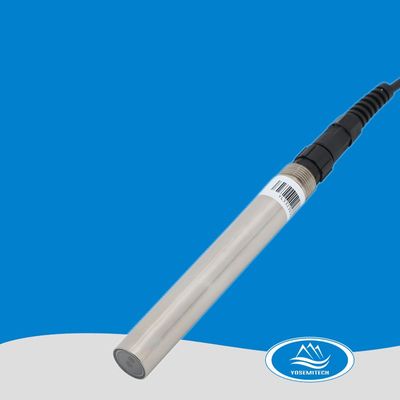

Yosemitech - Model Y613-B -Blue-Gree Algae Sensor
Yosemitech’s Y613-B blue-gree algae sensor is based measurement principle of ultraviolet fluorescence method. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable.It can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.
Most popular related searches
algae sensor
drinking water source
water source
phytoplankton monitoring
marine survey
water quality
drinking water
real-time water quality
real-time water
source water
- RS485 output, standard Modbus protocol compatible
- The fluorescence method is proven to be more efficient, fast and repeatable
- On-line continuous monitoring, real-time control of water quality dynamics.
Name: BGA Sensor
- Model: Y613-B
- Principle: fluorescence method
- Range: 0-200000 cells/mL
- Detection Limit: 300 cells/mL
- Resolution: 1 cells/mL
- Linearity: R²＞0.999±1ppt
- Housing IP Rating: IP68
- Maximum pressure: 6bar
- Temperature Range: 0 ~ 50℃
- Output: Support RS-485， Modbus protocol
- Power Requirements: DC 9~24V，<50mA

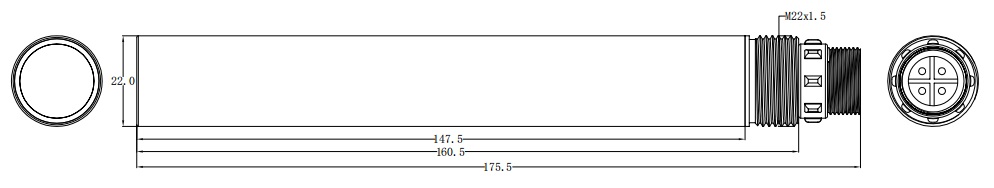

- Sensor Size: Φ22mm*175.5mm
- Self-cleaning wiper: Null
- Installation: Submersible installation
- Probe cable length: 10m (default), customizable
- Housing material: Ti
- Calibration: Two-points calibration
