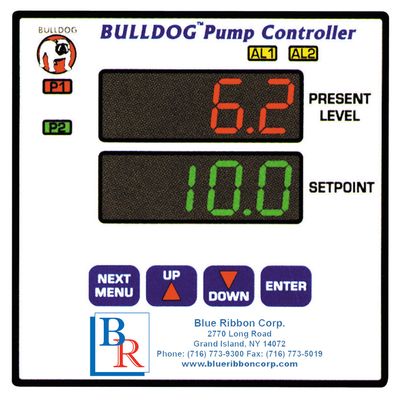

Blue Ribbon - Model BD100 -Set Point Pump Controller
Model BD100 Set Point Pump Controller (Bulldog) from Blue Ribbon Corp is designed exclusively for use with the Blue Ribbon Birdcage® level sensor providing basic pump control functions. The BD100 controller is an easy and inexpensive solution for monitoring and controlling pump station water levels. With six programmable level set points for pump control, including on/off set points for two pumps and settings for two alarms, and a pre-programmed set of default parameters to simplify the user interface and set-up.
Model: BD100
Temperature Range:
- Operating Range:- 10 °C to 55 °C (-14 °F to 130 °F)
- Storage Range: -40 °C to +80 °C (-40 °F to +175 °F)
Electrical:
- 24 VDC power
- Accepts 4-20 mA or 1-5 VDC
- 100 to 240 VAC nominal, +10% to 15%, 50 to 400 Hz single phase;
- 132 to 240 VDC +10% to 20%
Static Accuracy:
- ±0.25% of reading ±1 least significant digit
Approvals: CE
