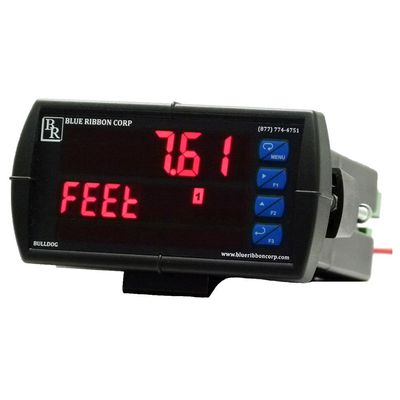

Blue Ribbon - Model BD200 -Dual Set Point Pump Controller

Model BD200 Dual Set Point Pump Controller is versatile, simple, and inexpensive, making it the ideal instrument for controlling dual pump lifting stations. Setpoints for ON/OFF and HI/LO alarms are easily set on the front panel. These same buttons also Enable/Disable pump alternation. A selectable time delay of up to 60 seconds on power-up for pump two prevents both pumps from starting at the same time and a large current draw. Alarms for pump seal failure and motor windings overheating are indicated by lights on the front panel. The dial can also display a runtime clock for each pump. An isolated 4-20 mA retransmission is standard. The front face is rated NEMA-4X for outdoor panel mounting. The BD-200 is also available with RS- 232 or RS-485 protocol for connectivity with SCADA systems.
