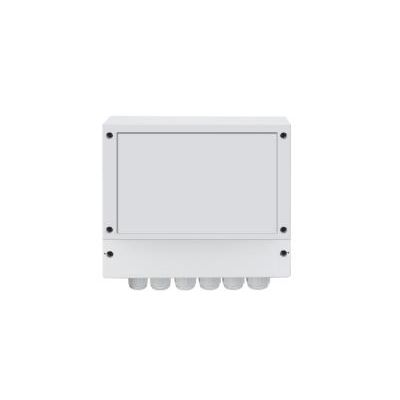

BlueSense - Model 486 M00 -Sensor Module

Basis configuration:

Input card channel 1: selectable option
Input card channel 2: selectable option

Inputs:
2x digital in (static), potential free contacts
2x pulse in PNP / NPN switchable (optionally: static)

Outputs:
Analogue output: selectable option

• 2x relays, potential free contacts, 230 VAC, 2A
• 2x relays, potential free closing contact, signalling contact

Power supply: selectable option

Housing:

• Material: polycarbonate, IP65
• Dimensions (LxWxH): 235 mm x 119 mm x 185 mm
• Weight: 1.35 kg
• Temperature range: -10 °C … +50 °C
• Mounting: wall mounting or cap rail
