ALIA - Model AMC3200 - Bluetooth, HART ...

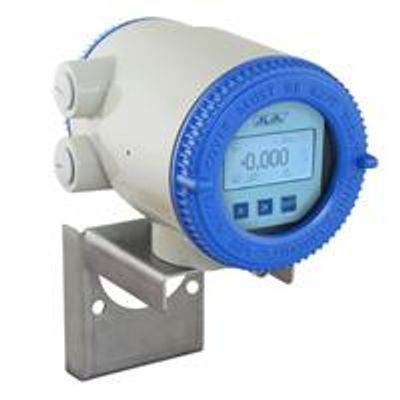

ALIA - Model AMC3200 -Bluetooth, HART Electromagnetic Flowmeter Converter AMC3200 ALIA

The Aliamag AMC3200 series converter is a microprocessor based intelligent transmitter that can be paired with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting. It's equipped with bluetooth, HART and Modbus communication functions. FEATURES Three line LCD display Flow Rate / Totalizer Accuracy of +/-0.2% value of reading Bi-directional flow measurement, current and pulse output Explosion Proof, Exd(ib)ibqllBT5 Bluetooth/MODBUS/HART communication Converter can be rotated at Four directions for easy installation SPECIFICATION Excitation:DC pulsed Display:3 lines LCD with illumination Accuracy:+/-0.2% of reading (Velocity >=0.5 m/s);+/-0.001 m/s (Velocity < 0.5 m/s) Communication:Bluetooth (Android)Standard;RS485 (MODBUS Protocol)Standard;HART signal (Compatible)Optional Protection Class:IP 67, Explosion proof, Exd(ib)ibqllBT5
