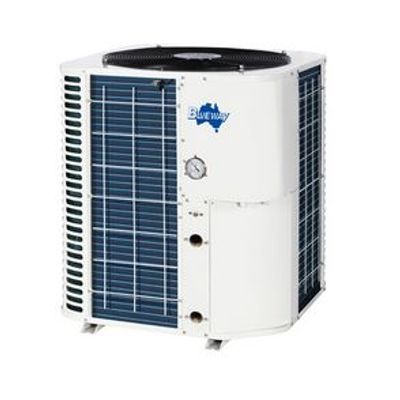

Blueway - Air Cooled Water Chiller

Blueway Commercial Air Cooled Water Chiller is specially designed for the need of chilled water in tropical regions of the gulf areas, where the ambient temperature in summer can go above 50CC, causing the rooftop tank water reach unbearable temperatures

This chiller system is designed to cool the roof tank water to a temperature ideal for kitchen, laundry and bathroom application. It uses a CFC free, eco-friendly refrigerant which is highly efficient and has no depletion to ozone layer. It adopts world top brand compressor, which is of high efficiency and quiet operation and is tropical for high ambient conditions.

The system consists of a refrigerant circuit and a water circuit. The refrigerant circuit is composed of a compressor, a condenser coil, a heat exchanger and a throttling device The water circuit is composed of a water pump and the same water heat exchanger. The refrigerant absorbs heat from the water passing by the heat exchanger, by which the water temperature is reduced. The whole system is controlled by an intelligent digital controller with a user friendly display.

• Tropical design for a maximum working ambient temperature of 53°C
• High-efficiency compressor, tropical for high ambient conditions
• Eco-friendly CFC free refrigerant R410a, without ozone depletion
• Microprocessor-based digital controller with LCD user interface & RS485 interface
• Heat exchanger with high thermal efficiency, high working temperature & low maintenance
• Guaranteed water safety, no potential risk of contamination to potable water
• Reduce chilled water costs by two-thirds
• Heavy gauge galvanized steel cabinet with epoxy powder paint for long-lasting outdoor life span
• Full safety protections incorporated into the system:
• high pressure and low-pressure protection
• compressor overload and high discharge temperature protection
• phase failure protection
• water flow protection
• anti-freezing protection
• The built-in circulation pump is optional
