BM-Silo - Model 102 mm -Transport Conveyor

102 mm piping has been used for this screw to ensure a capacity that meets most demands, e.g. in connection with the production of feedstuff. Complete extensions with piping, screw, connection flange and shaft are available in 0.5 - 1.0 - 2.0 and 3.0 m lengths. The maximum conveying length is 10 metres.

The drive is normally placed at the outlet end and is available with a a worm gear motor. The standard outlet is Ø150 mm or OK160.

Beet and wood pellets are normally too big and heavy for conveying in a standard screw. We have therefore designed a special screw sized for this task.

Four different inlets ensure optimum flexibility. All standard inlets are supplied with a bottom bearing as standard.

Accessories
45° outlet, intermediate bearing, extra inlet/outlet, level control, cover plates, connectors and extension sides for 300x300 mm inlets.

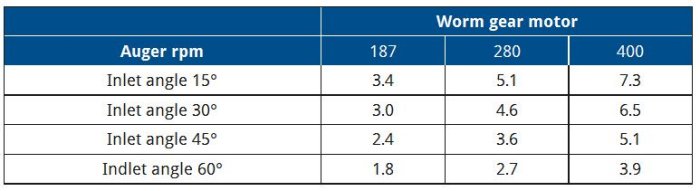

Length calculation

• 15° inlet angle
• 30° inlet angle
• 45° inlet angle
• 60° inlet angle
