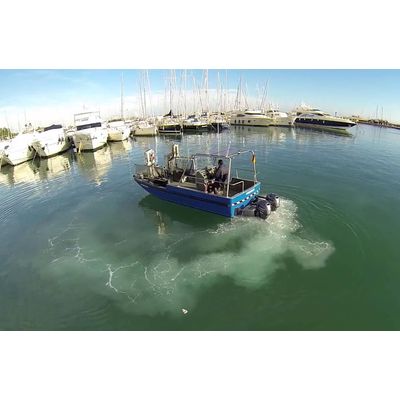

Beach-Trotters - Model Syrennis 5.5 -Boat
Syrennis boats are designed for the collection of any kind of floating solid waste that the sea brings to the shore and the bathing area.
- Collection of sargassum and other seaweed from the sea and beach shore.
- Lifting of small and medium-sized floating debris.
- Collection of floating debris of tar and high-density oil.
- Maintenance of the inland waters of commercial ports and marinas in a perfect state of cleanliness.
- Cleaning of the bathing area.
- Prevention, surveillance and action in the event of invasion of the shore by jellyfish.
- Collaboration in the rescue of people in the coastal area.
The collection of floating debris is carried out through the inlets located in front of the bow of the vessel. These nozzles capture any object while the boat is sailing.The nozzles are made up of a stainless steel tube frame and sacks with a capacity of 2 cubic metres where the water is filtered, leaving the waste, algae and sargassum inside the sack. The mouths are independent of each other. Once both are in working position, they form a 4.2 metre wide front.The mouths are attached to the articulated support arms, which carry out two synchronised movements that allow the mouths to be positioned quickly and perfectly at the front of the boat.When the bags are full, they are easily loaded on deck and emptied into the containers automatically without the pilot having to leave the boat unattended.
We study each project to adjust the design according to the detected needs, we prepare in detail the characteristics that the boat will have, we make the 3D modelling and the CAD plans necessary for the construction of the boat.
- Overall length: 5,5m / 7m / 8,5m
- Laying beam: 1.85 m
- Working width: 4.2m
- Working system: Two independent front jaws
- Type of work: Feed effect u0026amp; Port effect Independent arms with four movements
- Meshing options: 3 types
- Pick-up depth: Up to 40 cm
- Working speed: 2-3 knots
- Area covered/hour: 27,000 m2/hour
- Hull and cover: Fibreglass reinforced polyester
- Material of arms and nozzles: 316 Stainless Steel
- Crew: Minimum one crewman
- Load on deck solids (up to): 500 kg
- Fuel tank 75 litres
