SeSys Thermo-Vision - Body Temperature Screenings Devices

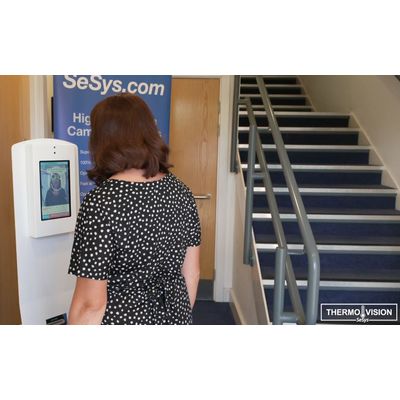

The Thermo-Vision is an easy to use, stand-alone device that requires no operator. The Thermo-Vision unit quickly measures an individual`s body temperature and then provides a measurement and identification sticker. Our contactless, easy to use stand-alone unit that requires no operator; the Thermo-Vision unit quickly measures an individual`s body temperature and then provides a measurement and identification label.
The SeSys Thermo-Vision is proven in its effectiveness. It stands alone as a unit that provides more accurate readings than many other units which are more focused on the skin surface temperature rating which can vary considerably. Only with a precise reading of the body`s core temperature can a truly accurate measurement be taken. This process is instantaneous and the result are accessible within seconds.
The Sesys Thermo-Vision can operate as a stand alone unit but can also interface with other thermal screening systems or as part of a range of other measures.
Body Temperature Screening to Help Combat Infection Spread
Fever is the leading indicator of contagiousness. Screening visitors and staff temperatures can help keep infection from spreading in your facility.
- Quickly measures an individual’s forehead and inner-canthus to determine the body’s core temperature.
- Self-adhesive “I’ve been screened” identification label for individuals with temperature below the threshold (Default 37.5°C).
- Immediate alerts when a temperature above the threshold is found.
- Second screen allows administrators to monitor and see exactly who is in front of the Thermo-Vision.
- Optimal for healthcare facilities, residential care homes, office buildings, commercial buildings, and education facilities.
- Optional time and temperature log available.
- Optional automated output for access control.
- Universal VESA mount (10cm x 10cm).
- Operating Throughput: 350 scans per hour, 250 scans per hour with optional printer (see label design above)
- Memory: 8GB
- Camera: 5 megapixel
- Operating System: GNU\Linux
- Display: 10.1” Backlit LCD
- Processor: Broadcom BCM2711
- Transient Response Time: 30ms
- Laboratory Accuracy: ±0.2°C (±0.4°F)
- Relative Humidity: 20-70% humidity, non-condensing
- Thermometer: High sensitivity calibrated Thermopile sensor (5° FoV)
- Connectivity: 2 x USB, 1 x Ethernet, 1 x HDMI, PSU Input
- Operating Temperature: 15°C to 28°C (59°F to 82.4°F)
- Storage Temperature: -20°C to 50°C (-4°F to 122°F)
- Measurement Range: 35°C to 42°C (95°F to 107.6°F)
- Power Supply Power Output: 12V, 3A DC
- Power Input: 100-240V AC ~
- Start-up Time: 30 seconds
- External Output for Relay: Volt free relay outputs. Separate outputs pulsed on ‘positive’ or ‘high’ reading (n/c and n/o available).
- Wireless Connectivity: Optional
- Dimensions: 19cm (w) x 36cm (h) x 5cm (d)
- Weight: 2.7kg
- Warranty: 1-year warranty (extended warranty available)
