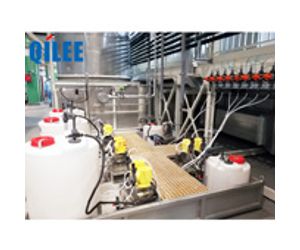

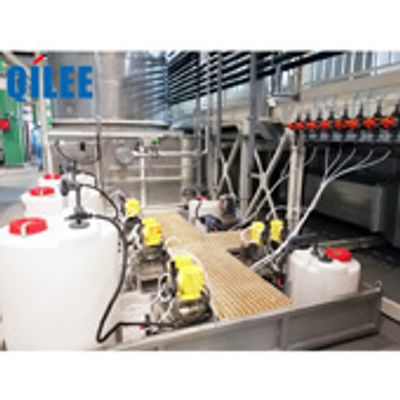

QILEE - Model QPDS-P2M0-II -Boiler Automatic Chemical Dosing System For Chilled Water

Chemical Dosing System Specifications:

Model: QPDS-P2M0-II

Metering pump Flow & Qty: 7.6LPH*2 sets

Tank: 250L*1

Meter:

Liquid tank: 300L

Dosing point: 1-2 points

External Dimensions: 1400*800*1700

Remarks:

Chemical Dosing System Features:

1. Chemical Dosing System used in papermaking, printing and dyeing, electroplating, lithium battery, photovoltaic and other production processes.

2. The automatic addition of fungicides, detergents, sizing agents, dyes, etchant, acid copper, PH regulator and other production aids can be realized.

3. On line inspection items can include PH, concentration, total chlorine, metal content and other process parameters.

4. It can realize wireless remote transmission of all online parameters and equipment running status and real-time monitoring of mobile phone.

5. Some on-line instruments are developed and developed according to the characteristics of the charging process, and the famous international famous brand products such as metering pumps and pipe valves are selected to ensure the long-term and stable operation of the system.

6. Spare pumps, safety valves, calibrated column pressure gauges, cleaning pipes, and leakage tanks are all standard to ensure safety and stability.

7. Some of the models can be configured locally, receiving automatic operation of dosing instructions and automatically switching spare pumps to ensure the quality of finished products and effectively save the cost of auxiliaries.

8. Cooperate with many chemical additives suppliers for a long time.

9. The products are widely used in famous enterprises such as APP, Li Wen, Jiu Long and Hua Fang.
