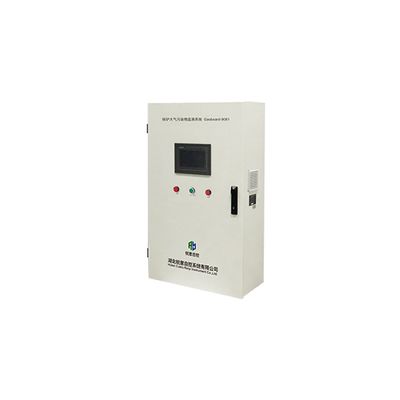

Cubic Instruments - Model Gasboard-9081 -Boiler Emissions Monitoring System (Premium Rev.)

It adopts international leading UV DOAS technology, NDIR technology and long-life ECD technology, and is equipped with an integrated and automatic sampling pretreatment unit and control unit, Gasboard-9081 is suitable to simultaneously measure NO, SO2,O2, O2, CO and CO2 concentration in flue gas. It is an on-line monitoring device dedicated to boiler emission and energy efficiency control, which meets the emission regulatory requirements of national and local environmental protection departments.

1. Multi-stage dust removal and dehumidification for stable performance
2. Pre-treatment system with built-in flow meter, filter, cooler to process the sample gas to ensure the reliability of the analysis system
3. Easy operation
4. Auto sampling, drainage, fault handing to achieve 24 hours unattended
5. The measurement range is as low as 100mg/m3, meeting national environmental protection standards and ultra-low emission monitoring needs
6. Data can be transmitted to the upper centralized control system through RS-232 or RS-485, 4-20mA output interface, providing real-time basis for remote monitoring and process adjustment;
7. Sound and light alarm output (optional sound and light alarm), timely remind faults and super-discharge information

Boiler emission gas monitoring, low-nitrogen reform environmental monitoring, energy efficiency monitoring, nitrogen oxide concentration monitoring in low-nitrogen burner exhaust, nitrogen oxide monitoring in exhaust gas from VOCs treatment project of combustion method.
