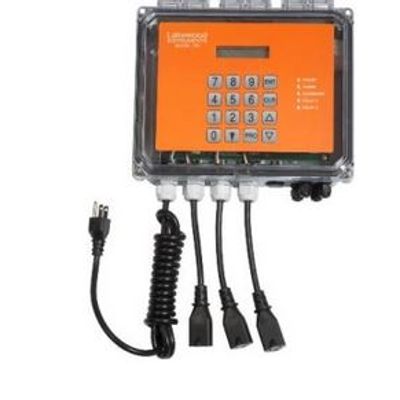

Lakewood - Model 150 -Boiler Water Conductivity Controllers
The Model 150 uses the latest in microprocessor capability, giving the user a high level of application flexibility. Multiple inputs and very easy setup characterize this new technology. This controller can be used in the Continuous Sample, Sample/Cycle, orSample/Holdmodes to control the boiler water conductivity.
Most popular related searches
boiler water conductivity
conductivity controller
water conductivity
boiler water
water meter input
flow switch
water metering
water meter
water boiler
boiler water control
- Use this Controller for conductivity control of boilers. It can be used for Continuous Sample, Sample/Cycle, or Sample/Hold control of boiler conductivity.
- Removable power cord and receptacles for simple conduit installations.
- One (1) water meter input, conductivity input, flow switch input, and 4-20 mA output are all standard features.
- Designed with a single circuit board for better reliability and lower cost.
- Large open shallow enclosure for easy wiring.
- The enclosure is rated NEMA 4X.
- Power selector switch for 115 or 230 vac operation.
- Heavy-duty stainless steel domed numeric keypad and illuminated graphical display allow for quick and easy programming. Steel domed switches improve the tactile sensing and life expectancy of the keypad.
- LED indicators for power, alarm and relay status.
- The display is lit by two LEDs when any key is pressed.
- Easy to program, the Model 150 Controller uses an intuitive menu and a numeric keypad for programming.
- No add-on options. Flow switch input, 4-20mA output, and three boiler conductivity control methods; Continuous Sample, Sample/Cycle, and Sample/Hold are standard.
- Single circuit board design improves reliability.
- Multiple methods of chemical feed for application flexibility.
- Easy to program, the Model 150 Controller uses an intuitive menu and a numeric keypad for programming.
- No add-on options. Flow switch input, 4-20mA output, and three boiler conductivity control methods; Continuous Sample, Sample/Cycle, and Sample/Hold are standard.
- Single circuit board design improves reliability.
- Multiple methods of chemical feed for application flexibility.
