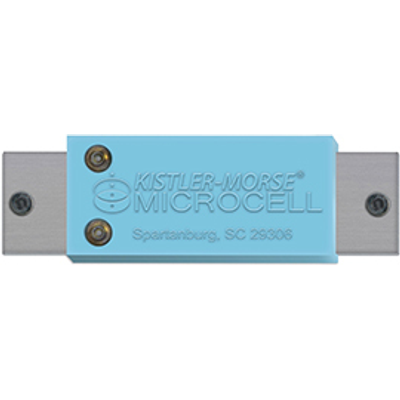

Kistler-Morse - Model Microcell -Bolt-On Strain Gauge Sensor
The Microcell is an easy to install bolt on sensor that produces an electrical output proportional to the changes in weight of a vessel.
Most popular related searches
- An empty vessel is not required for installation or calibration. This allows for increased up-time.
- No special tools are required for installation
- Immune to material characteristics like angle of repose, rat-holing, bridging, moisture content, compaction, vapors and dust
- For vessels with a capacity of 75,000 lbs or more
- Repairs and retrofitting can occur without taking the silo out of commission.
- Average Accuracy: 3 to 5%
- Excitation Voltage: 10 to 30 VDC
- Excitation Current: Approximately 3 mA
- Functional Integrity (Fatigue Life): >20 million cycles
- Operating Temperature: -30° to 150° F (-34° to 66° C)
- Dimensions:
- 2 inch model: 2 x 1 inch (double check)
- 3inch model: 3 x 1 inch (double check)
- Approvals: ATEX, CE, UL
