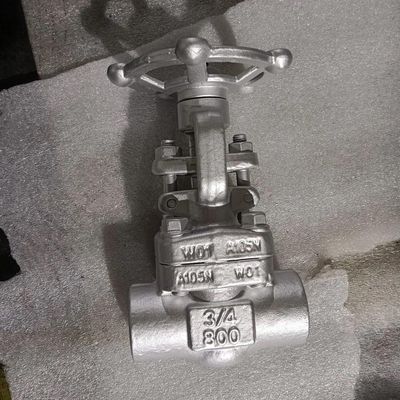

Vervo - Model ASTM A105N -Bolted Bonnet Gate Valve
Shop for high-quality ASTM A105N bolted bonnet gate valves at our factory. Available in various specifications including 3/4 inch (DN20), with 800 LB (PN130) pressure rating, conforming to API 602 standards. Constructed from durable carbon steel, featuring ASME B1.20.1 end connections suitable for sizes ranging from 1/2 to 2 inches, and pressure ratings from 150 to 2500 LB.
Most popular related searches
Gate valve, CARBON steel, bolted bonnet, NPS 3/4, 800 LB, A105N.
Valve description:
- Gate valve, bolted bonnet, RISING STEM.
- Design: API 602.
- Body: ASTM A105N
- Nominal size: 3/4 INCH.
- Nominal class: 800 LB.
- End Connection: ASME B1.20.1.
- Face to face: MFG`S.
- Test and inspection: API 598.
Product Range:
- Body material: CARBON steel.
- Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
- End connection: SW, NPT, BW, Flanged.
- Pressure range: Class 150-2500 LB.
- Working temperature: -29? - +425?.
- Product: Gate valve.
- Nominal diameter: 1/2 Inch - 2 Inch.
- Design temp.: Down to -29?.
- Design pressure: 150-2500 LB.
- Material: Carbon steel.
- Design standard: API 602.
- Face to face: MFG`S.
- Connection end: SW, NPT, BW, Flanged.
- Test standard: API 598.
- Package: Plywood
- Application: Water, steam and air
- Certificate: CE, ISO 9001, ISO 14001, TS
