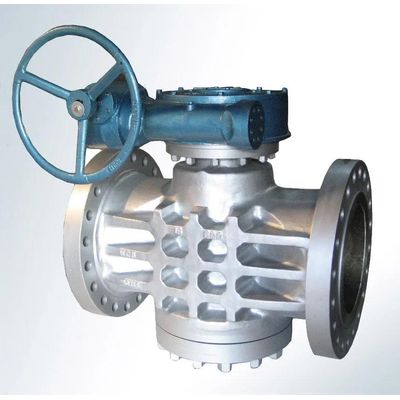

Vervo - Model API 599 -Bolted Bonnet Plug Valve
Explore our API 599 Bolted Bonnet Plug Valve Factory offering, featuring a 16 Inch size with DN400 dimensions, suitable for 600 LB and PN100 applications. Manufactured to API 6D standards using ASTM A216 WCB Carbon Steel, these valves are designed for lubricated, bi-directional flow, with RF End connections and equipped with gear operation.
Most popular related searches
Plug valve, carbon steel, NPS 16, 600 LB, WCB, RF, bi-direction, acc.to ANSI.
Valve description:
- Plug valve, carbon steel, bolted bonnet, lubricated
- Design: API 6D, API 599
- Body: ASTM A216 WCB
- Nominal size: 16 Inch.
- Nominal class: 600 LB.
- End Connection: RF
- Face to Face dimension: ASME B16.10.
- Test and inspection: API 598.
- Operation: GEAR
Product Range:
- Body material: Carbon steel.
- Normal diameter: 1/2 - 14 Inch (DN15 - DN350).
- End connection: Flange.
- Pressure range: Class 150 - 1500 LB (PN16 - PN160).
- Working temperature: -29? - +300?.
- Product: Plug valve.
- Nominal diameter: 1/2 Inch - 14 Inch.
- Design temp.: Down to -29?.
- Design pressure: Class 150 - 1500 LB.
- Material: Carbon Steel.
- Design standard: API 6D, API 599
- Connection end: Flange.
- Test standard: API 598.
- Package: Plywood
- Operation: Lever, Gear box, BARE SHAFT
- Medium: Oil, gas, water
