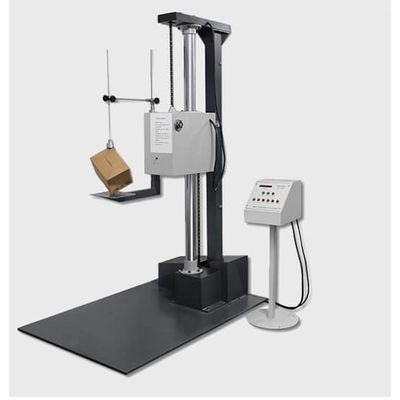

Bonad - Model BND-DLS -ISO 2248 Single Arm Package Drop Tester
ISO 2248 Single Arm Package Drop TesterType:BND-DLSThe Single Arm Package Drop Tester by BONAD is engineered to conduct free-fall tests on complete, filled transport packages. It simulates the impact of a corrugated box hitting its side, edge, or corner from a specified height and angle. This test helps determine whether the package and its contents can endure the impact forces encountered during actual transportation.To achieve accurate test results that closely mimic real-world conditions, it is essential to use test sample packages filled with intended, simulated, or dummy contents.
The Single Arm Package Drop Tester by BONAD is engineered to conduct free-fall tests on complete, filled transport packages. It simulates the impact of a corrugated box hitting its side, edge, or corner from a specified height and angle. This test helps determine whether the package and its contents can endure the impact forces encountered during actual transportation.
To achieve accurate test results that closely mimic real-world conditions, it is essential to use test sample packages filled with intended, simulated, or dummy contents.
- ISO 2248 Packaging – Transport package – Vertical impact test method by dropping
- GB/T4857-5 Packaging – Transport package – Vertical impact test method by dropping
- ASTM-D5276 Standard test method for drop test of loaded containers by free fall
- Stable Structure: Our drop tester boasts a robust design capable of handling loads up to 100 kg.
- Single-Wing Support Arm: Ideal for testing small-sized and regularly shaped cartons.
- Economical Solution: Developed with cost-efficiency in mind without compromising on quality or performance.
If you are looking for more different drop test machines for drop testing of small packages less than 80 kg, please check out our Pneumatic drop tester, Double-arm Drop Tester and Zero Distance Drop Tester, or directly reach us to learn more.
Model: BND-DLS
- Drop Height Range:
- 300 mm ~ 1500 mm (standard)
- 300 mm ~ 1800 mm (optional)
- 300 mm ~ 2000 mm (optional)
- 300mm~2100mm(optional)
- Testable Max. Weight of the Specimen: 100 kg
- Testable Max. Dimension of the Specimen: 800 × 800 × 1000 mm
- Impact Surface Dimension: 1700 × 1200 mm
- Impact Surface Material:
- Solid iron, 12 mm (horizontal flat rigid)
- Concrete or wood plate
- Drop Height Deviation: ± 10 mm or not more than 2%
- Drop Angle: Surface, edge, sharp corner
- Control Mode: Electric
- Impact Panel Parallelism: ＜ 1°
- Machine Overall Dimension: Appr. 1700 × 1200 × 2350 mm
- Weight: 500 kg
- Power: AC 380V, 50Hz, 3 Phase 4 wires + earth wire or Specified
