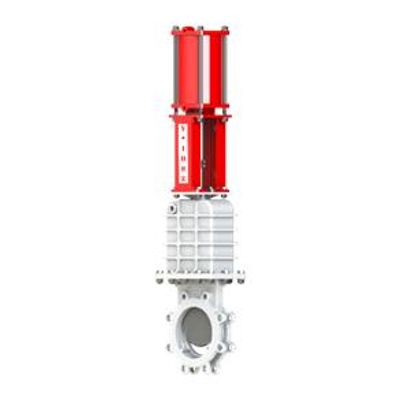

V-Tork - Model U - 205 AWWA -Bonneted Knife Gate Valve
Water & Waste Water Treatment Plants, Paper, Mining, Power, Hydro Dams (Higher Size), Water Sludge, Treated Water, Service raw water, Sewerage, Thickened Sludge.
Range of Material of Construction CI / DI / WCB / CF8 / CF8M / CF3M / CG8M / SMO254 / Duplex 2205 & Special Materials on Request
Range of Seat Materials EPDM / Viton / Natural Rubber / Nitrile/ PTFE/ CFT/GFT
Range of Actuators Hand Wheel, Bevel Gear, Pneumatic Double Acting/Single Acting Cylinder, Hydraulic Cylinder, Electro-Pneumatic Operation, Motorized
Range of Accessories & Addl. Features Solenoid Valve, Limit Switch, Proximity Switch, Junction Box, Positioner, V-Port for Throttling, Purging Arrangement, Accumulator for Emergency Shut Off, Wear Rings, Deflection Cones, Nitride hardening
- UniDirectional, Lug Type
- Size 2” to 120” (50mm to 3400mm)
- Bonneted / Bonnet Less
- Metal Seated / Soft Seated
- 150 PSI CWP
- Standard: AWWA C520-10
