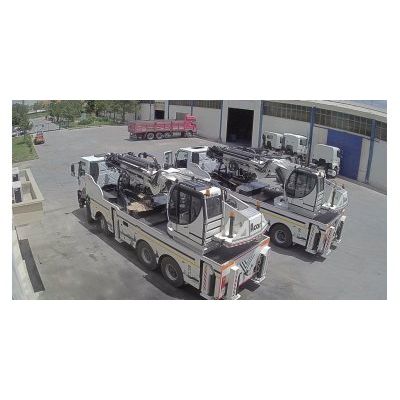

Knuckle - Model 185TM-KÇ -6 -Boom Mobile Cranes

Max. Lifting Capacity ( 3 mt) 59980 kg. Max. Hydraulic Extension 17160 mm. Max. Manual Extension 22350 mm. Hydraulic Boom 6. Manual Boom 2. Total Moment 185 Tonm. Working Pressure 295 bar. Rotation Angle Endless / Continuous. Max. Outrigger Reach 8712 mm.
