CDC Dust Control
CDC - Model 150 -Booster Pumps
FromCDC Dust Control

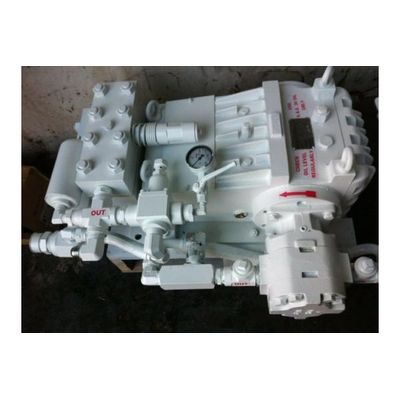

The CDC 150 booster pump provides optimum water flow and pressure for your dust suppression systems in continuous miners, road headers and other high water pressure applications.
Most popular related searches
booster pump
dust control system
road header
pressure booster pump
dust suppressant
dust control
high-pressure water pump
water booster pumping
water booster pump
high-pressure water
It features a rugged design that’s built for maximum performance and reliability in the most severe conditions, and provides a long life with minimum maintenance requirements.
- 2 variants to choose from (based on the incoming water pressure)
- Electrically or hydraulically operated
- Flame-proof
- High-pressure, positive displacement
CDC provides support for applications with a 24-hour service exchange programme, ensuring minimal downtime and reduced client inventory requirements.
- Max. speed : 600 RPM
- Max. rated capacity : 150 l/min
- Max. rated pressure : 80 bar
- Motor type : 1.5 inch hydraulic gear motor (100 cc/rev)
- Hydraulic motor ports : 1 inch NPT
- Max. power : 25.4 kW
- Temperature rating : 82° C
- Suction port size : 1.5 inch JIC male
- Discharge port size : ¾ inch JIC male
- Weight : 250 kg
- Pump type : Positive displacement
- Hydraulic motor in : 1 inch NPT female
- Hydraulic motor out : 1 inch NPT female
