Boreal -Â Insertable (IPX) Probe Assembly

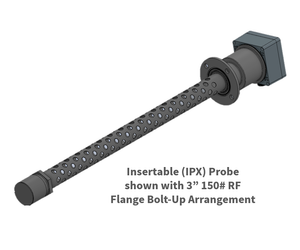

Make an In-Situ Point Measurement: 3" 150# Raised Faced Flange Bolt-Up Pattern. Use in Hazardous Area Applications: (A) Ex ib IIC T5 Tamb less than 70? Gb (C1 Div1, G: A, B, C, D). No Sensor Poisoning: No consumable measurement sensors. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. Insertable (IPX) Probe: When combined with one of the GasFinder3 Analyzers, it creates a direct and non-contact measurement within a stack, duct, tank, or enclosure for quantitative or feedback control applications.
Direct + Non-Contact Measurements
No sensor poisoning and fouling
Fast Speed of Response + Recovery
New and independent result every single second
No Calibration + No Intervention
Due to the GasFinder`s Internal Reference Cell
Fail Safe Operation + SIL2 Suitable
Diagnostics with no undisclosed failure modes
Thrives Where Others Do Not Survive
Ideal for challenging monitoring applications
Need for Enhanced Performance
Early detection and rapid intervention saves lives
Operational Cost Savings
Low maintenance burden and no consumables
Use in Hazardous Area Applications
(A) Ex ib IIC T5 Tamb
Laser Light is the Sensing Element
Class 1 Eye Safe: Near Infrared (NIR) laser light

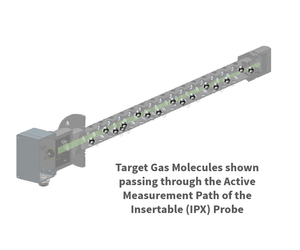

This Counts the Target Gas Molecules
As they pass through the Active Measurement Path
Quantifiable Volumetric Result
Confirmation of both gas type and concentration
No Interference + No False Alarms
This only detects the specific target gas of interest
Form the Active Measurement Path
With the Open Path (OPX) Head + Retro-Reflector
Easily Obtain + Maintain Alignment
Align with one hand without needing hand tools
Superior Tolerance to Vibration
Vibration helps to integrate and quiet the analysis
High Laser Power + Tight Collimation
Optimized for use in short/long path applications
