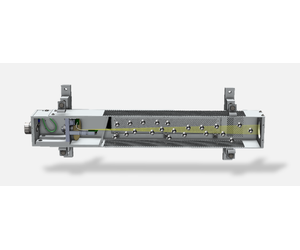

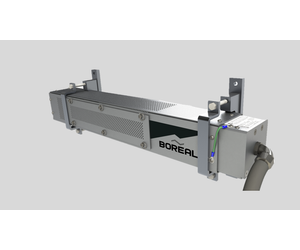

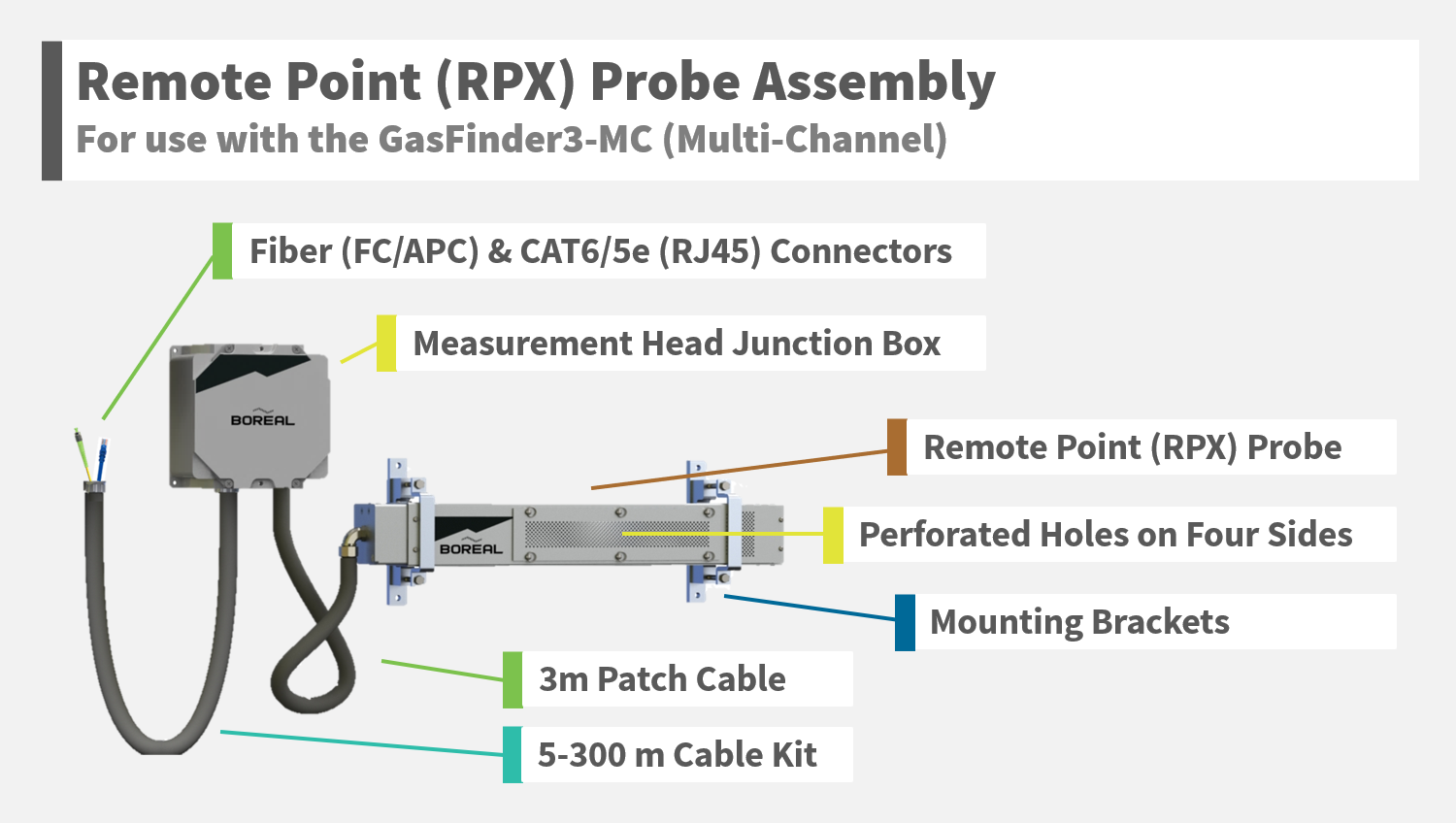

Boreal -Â Remote Point (RPX) Probe Assembly

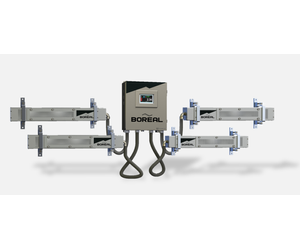

Used for Point Gas Detection: Laser Based - Fixed Point Gas Detection. Use in Hazardous Area Applications: (A)Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A,B,C,D). No Poisoning, Flooding, or Fouling: No consumable measurement sensor. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. When combined with one of the GasFinder3 Analyzers, it creates a Laser Based – Fixed Point Gas Detection measurement for applications that require fast speed of response or immunity to poisoning/fouling.
Larger Area Coverage

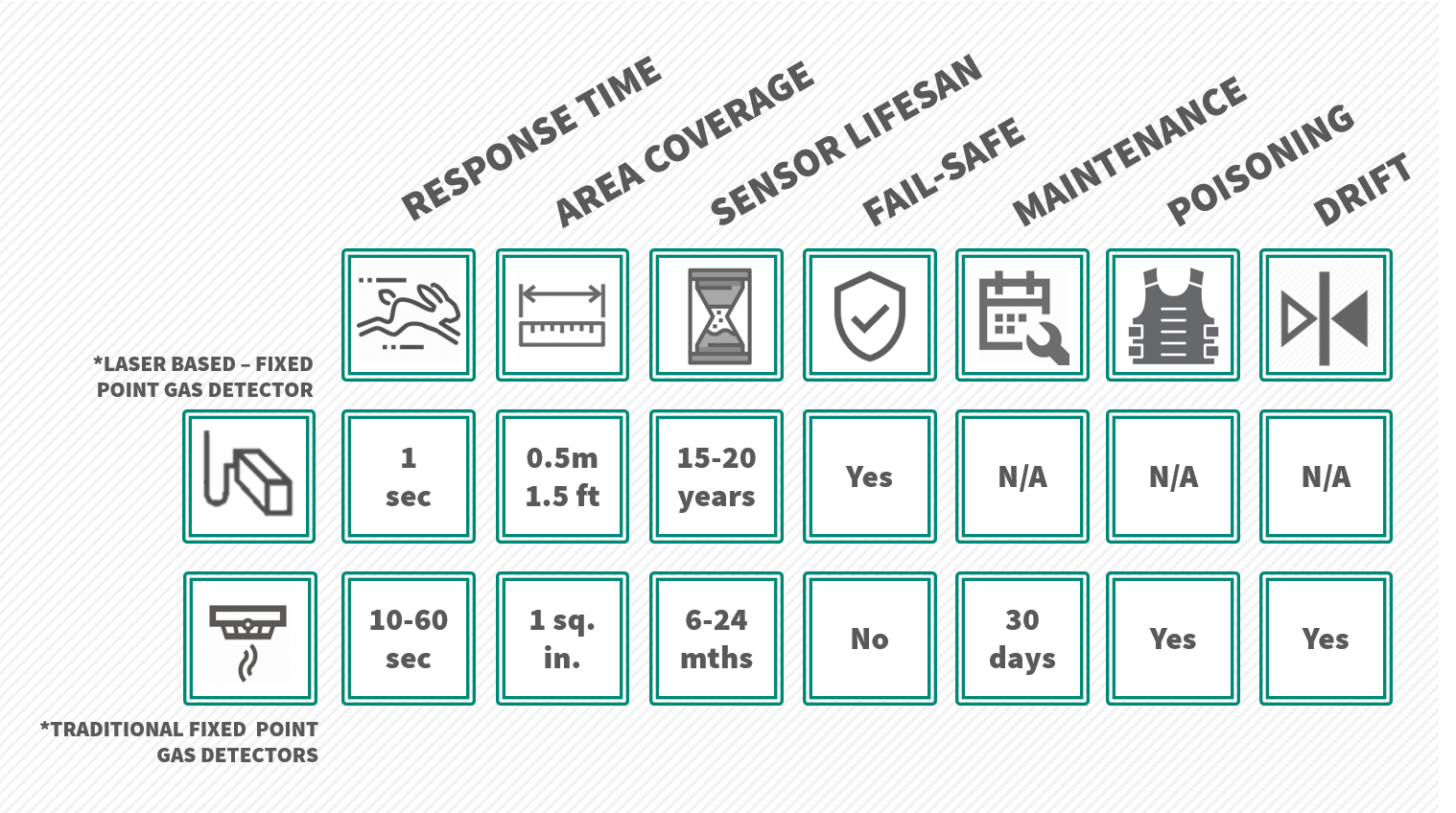

Compared to other Fixed-Point Gas Detectors
Fast Speed of Response + Recovery
New and independent result every single second
No Sensor Poisoning + Over Ranging
Ideal for frequent and/or constant gas exposures
Fail Safe Operation + SIL2 Suitable
Diagnostics with no undisclosed failure modes
Thrives Where Others Do Not Survive
Ideal for challenging monitoring applications
Need for Enhanced Performance
Early detection and rapid intervention saves lives
Capital and Operational Cost Savings
Long life span and minimal maintenance burden
Use in Hazardous Area Applications
(A) Ex ib IIC T5 Tamb

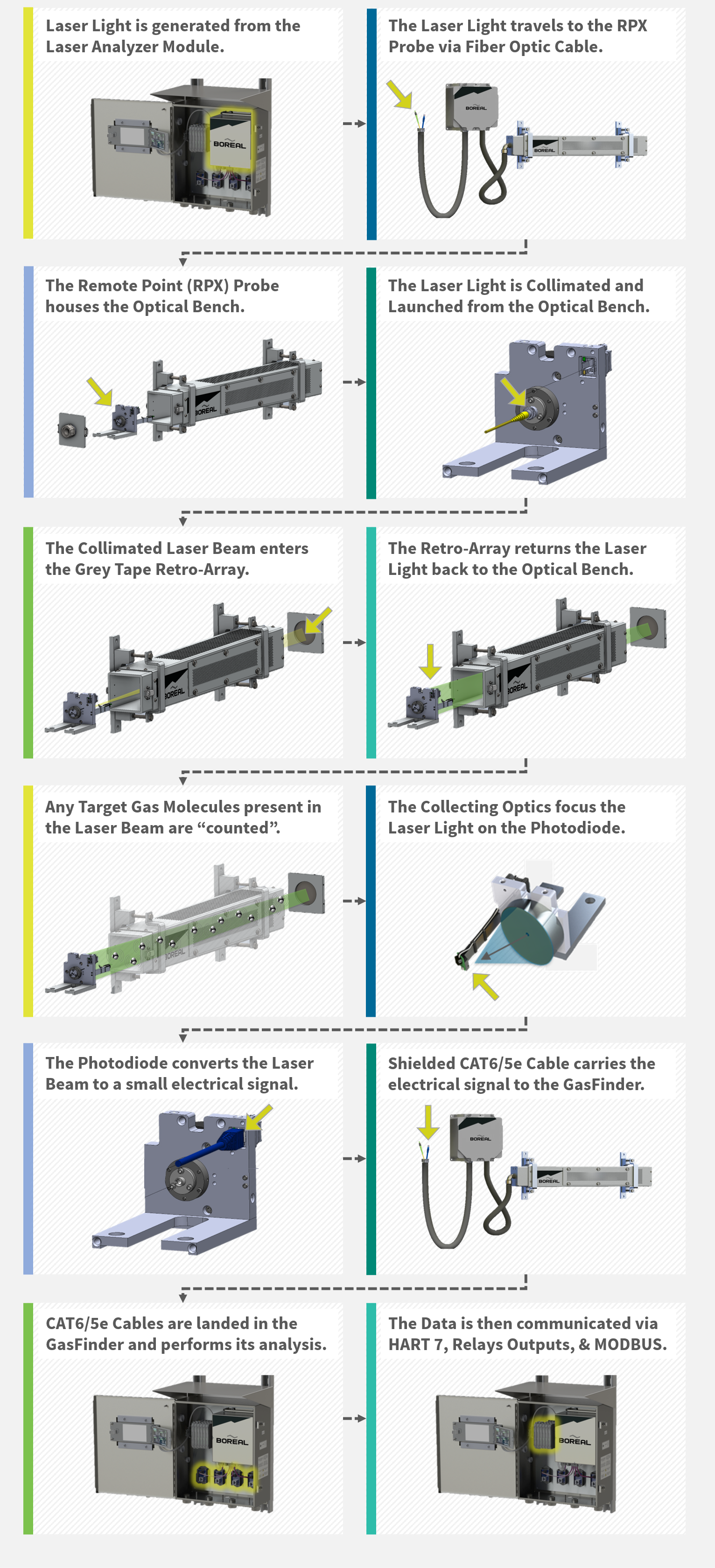

Laser Light is the Sensing Element
Class 1 Eye Safe: Near Infrared (NIR) laser light
This Counts the Target Gas Molecules
As they pass through the Active Measurement Path
Quantifiable Volumetric Result
Confirmation of both gas type and concentration
No Interference + No False Alarms
This only detects the specific target gas of interest

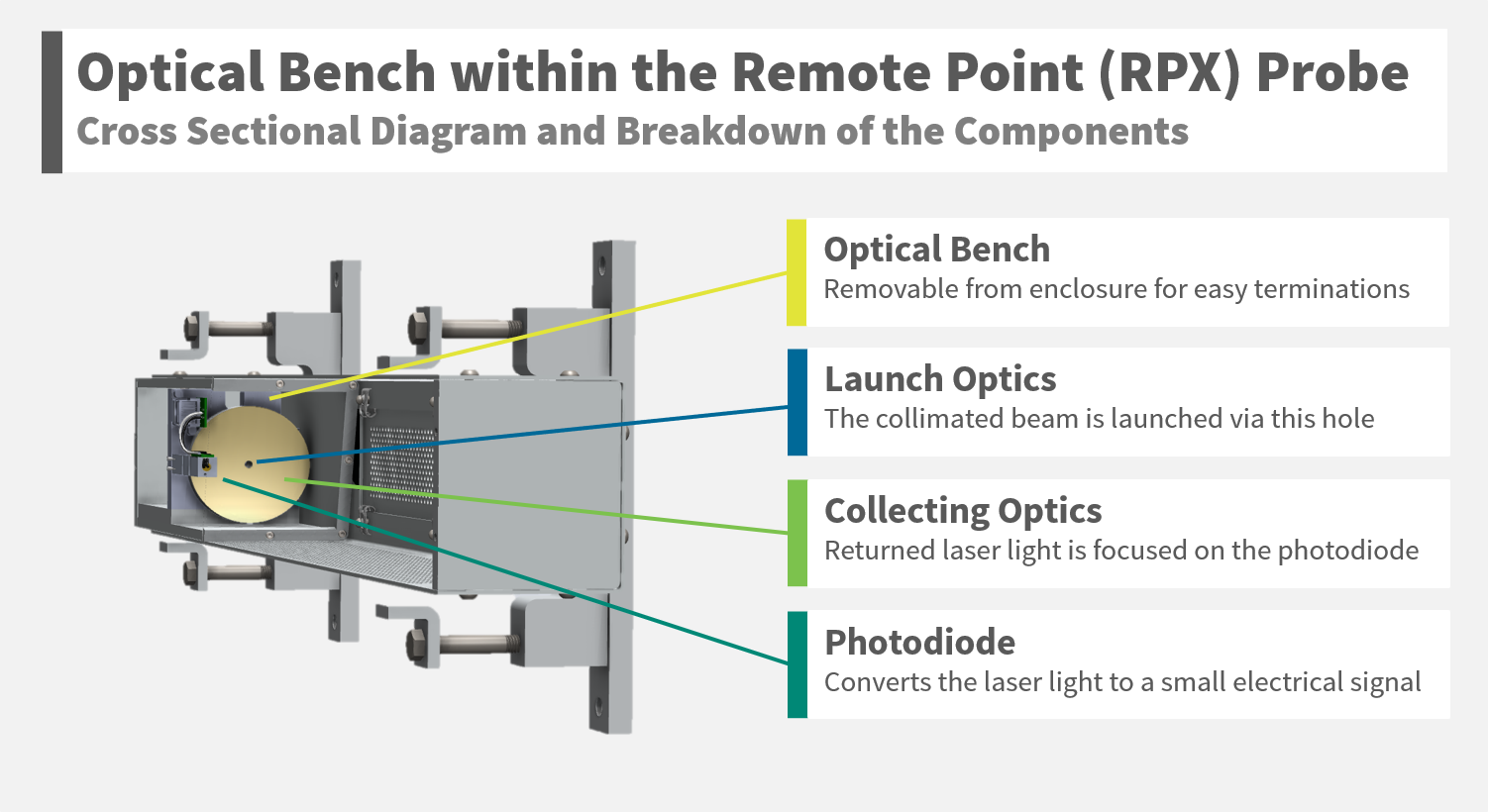

Form the Active Measurement Path
Within the Remote Point (RPX) Probe`s Cage
Lower Detection Thresholds
Doubling the path length enables lower detection
No need to worry of Beam Block
Short path handles transient steam, fog, etc.
Self Contained Measurement

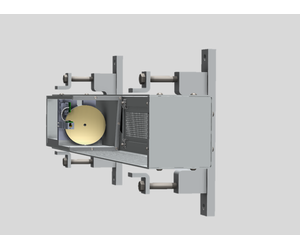

Laser stays within the Remote Point (RPX) Probe

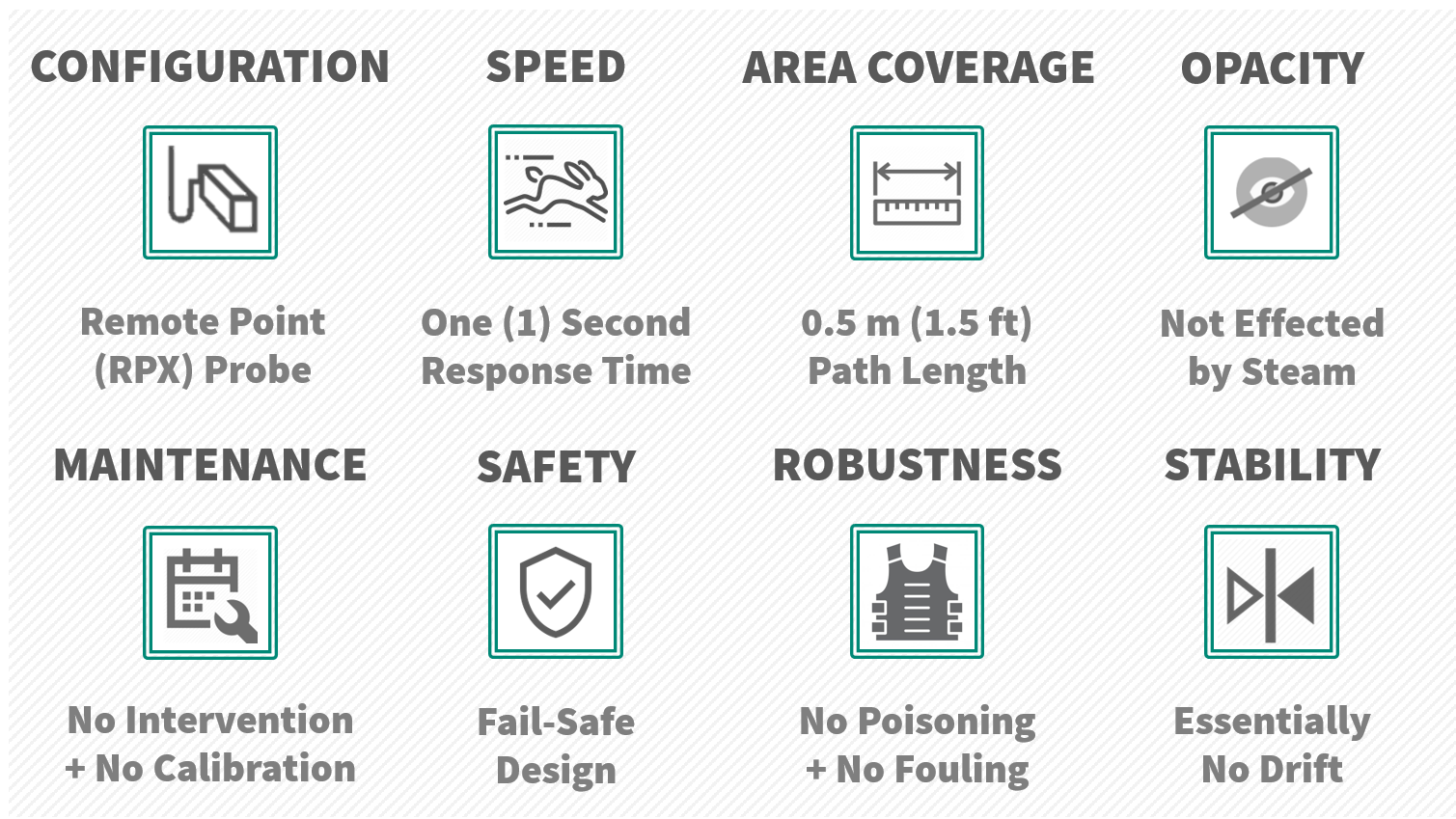

What You Need to Know
At a glance, here is what you need to know about the Remote Point (RPX) Probe which makes Fixed Point Gas Detection Measurements.
