HMA - Model R-Cam XS -Borehole Camera

FromHMA Geotechnical a division of the HMA Group

SHARE

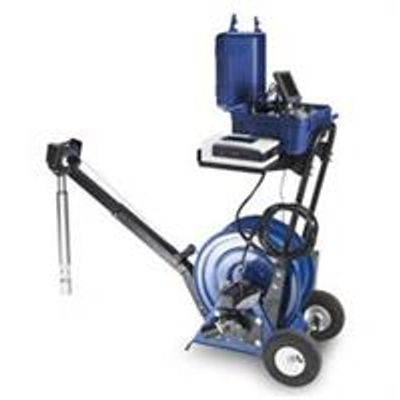

The R-Cam XS is a portable dual-view, borehole camera system with automated control for either downhole or side-view video profile. Side-view lens includes 360 o degree rotation to the right and left with no external moving parts. This camera has effective survey capabilities for 7.62cm to 30.5cm well diameters. The R-Cam well camera system comes equipped with a protective case provided for storage, lighting system, camera, control unit, cable, video monitor, cantering bands, DVR recorder, power supply and transport cart for easy maneuvering.

Most popular related searches

borehole camera

borehole camera system

water well camera

groundwater monitoring

construction inspection

water monitoring system

New R-cam 1000XLT Water Well Camera

5 Stage adjustable lighting
Digital controls
5x Brighter LEDs

New XLT Control Unit

New solid state DVR
Record to USB
Photo capturing
Voiceover recording
Wireless keyboard
On-Screen titling
Wireless streaming

New construction inspection
Determine existing well conditions
Perform preventative maintenance
Ground water monitoring
Lost tool recovery
Track well conditions

Industry leading high resolution photos for optimal viewing
Complete control panel with 7î colour monitor
Dual camera system
High intensity lighting
Transport cart
Digital video recorder
Digital on-screen depth counter
Powered reel with 12VDC battery pack

Diameter (Camera Head): 5.1 cm O.D. x 508mm long
Overall Length: 50.8cm
Housing: Stainless steel
Cable: 304.8m or 396.2m Kevlar-reinforced, small diameter coaxial cable. Single conductor electronic technology.
Lens: BK-7 glass
Power Supply: Portable 12VDC battery pack and charger. Rechargeable by local current (please specify at time of order).
Total Weight: (Camera) 8.2 kg, (Assembly) 100 kg
Pressure Rating: Pressure tested and waterproof to 500 p.s.i. 351 m Water head
Scanning System: Camera Modules greater than or equal to 540 TVL for NTSC and PAL
Operating Temperature: 0 o to 50 o C
Recorder: Records onto a Battery Operated DVR (please specify NTSC or PAL at time of order)
LED Lighting: High intensity, long life, shock proof LED lighting, side view and forward view
Depth Counter: On-screen depth display measured in feet and tenths, or meters.
Monitor: 7-inch LCD color monitor with sunscreen viewing hood
Winch, Reel, Motor, and Cart: 12VDC electric powered, variable speed reel for raising and lowering camera in well. All parts are mounted on a small, two-wheeled cart with extendable 36-inch boom.
