PRD Rigs India Pvt Ltd.

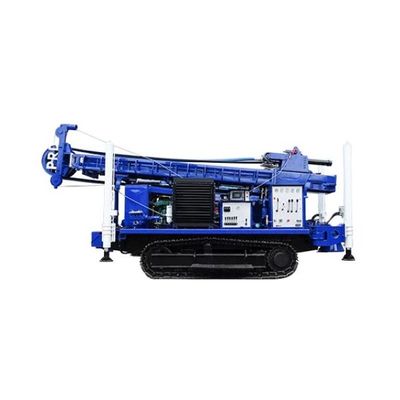

PRD Nova Star - Model 350 -Borehole Drilling Rig
A borehole drilling rig with a pull-up force of 16485 kg capable of drilling 6 1/2” diameters up to 365 m depth. Drilling hole size range from 8″ – 17”.
Most popular related searches
drilling rig
water well drilling rig
water drilling rig
borehole drill
borehole drilling
borehole
water well drill
water drilling
borehole depth
mud pump
- APPLICATION: Water Well Drilling Rig
- DRILLING METHOD: DTH / Rotary
- DIAMETER: 8" to 17" dia bore hole
- DEPTH: 365 mtr @ 6 ½" bore hole
- FORMATION: Soft / Hard
- PRIME MOVER: Power for the hydraulics taken from Suitable deck engine
- MAST: Rod handling : 5 m
- ROTARY HEAD TORQUE: 8000 Nm
- ROTARY HEAD SPEED: 0 - 100 rpm
- PULL UP FORCE: 16485 kg
- PULL DOWN FORCE: 9942 kg
- PULL UP SPEED: 20.5 m/min
- PULL DOWN SPEED: 35 m/min
- JACKS: Four Box type hydraulic jacks
- COMPRESSOR:
- Separate skid / truck
- 1100 cfm - 300 psi
- MUD PUMP: PRD Engine driven centrifugal mud pump
- MOUNTING: Crawler
