Advanced Logic Technology (ALT)

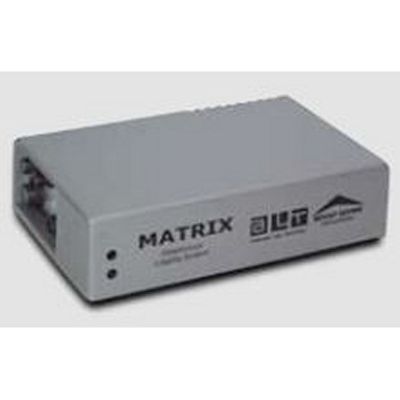

ALT MATRIX - Borehole Logging System
Combining their long experience in the slimhole logging industry Mount Sopris and ALT have teamed up to develop M A T R I X, providing a single solution to the multiplication of telemetry standards seen in the logging tool industry over the last decade. Since its introduction in 2006 the system has become the system of choice for a diverse range of end users acquiring borehole data in the mineral exploration, groundwater, geotechnical, and environmental industries.
Most popular related searches
borehole logging
borehole logging system
borehole data
borehole
data logger
mineral exploration
groundwater geotechnical
telemetry
borehole logging data
borehole system
- Uses the latest Digital Signal Processor (DSP) technology directly linked to the wireline through a pair of ultra fast high-resolution A/D and D/A converters.
- Supports all ALT & Mount Sopris tools, most analog tools and a wide range of 3rd party tools.
- Telemetry automatically adjusts for operation on most common wireline lengths and configurations.
- Settings totally software controlled (incl. depth encoder and wireline tension).
- Real time data display and printing using MATRIX software. Windows printer support, ALT and LAS data output
- Support of sophisticated software tools such as digital scope, spectrum analysis and histograms for signal tuning and access to configuration database.
- Lightweight portable, but extremely robust and adaptable.
- Dimension (W x L x H) : 20 x 33 x 10 cm 8 x 13 x 4 in
- Weight 5 kg
- Input Voltage 90 – 240 VAC, 50 – 60 Hz inverter compatible
- Tool Power Up to 200 V / 300 mA
- Cable Connectors 18 Pin Mil-C-26482
- (single connector for depth, tension and wirelines)
- PC Connection High speed USB
- Operating System Windows 2000, NT4, XP, VISTA
- Logging Cable Standard single, four, seven conductor and coax
- Logging Speed e.g. ABI 40 @ 3mm, 144 pts/trn : 2.5 m/min
- Tools / Telemetry ALT, MSI, Geovista, Robertson V106, Century, analog tools (up to 4 pulse channels)
- Upgradeability User upgradable firmware
- Software Matrix Software
