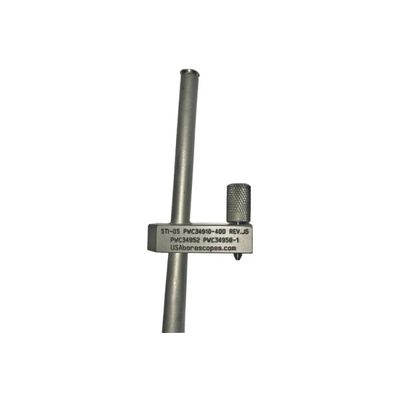

Pratt & Whitney - Model PWC34910-400 -Borescope Guide Tube
Whenever undertaking fuel nozzle maintenance, make sure to perform a borescope inspection at the same time. To do this, you will need a borescope, including a borescope guide tube for accessing hard-to-reach areas of the engine. Using an articulating borescope is much easier than the old-fashioned method, which involves opening up the engine. To prevent videoscope or borescope damage, often times a cool down period is required after the shut down of engines, boilers and furnaces in order to reduce the internal temperature below 170 degrees F (76.7C).
- PN: PWC34910-400
- PWC34952 P&W Borescope Guide Tube
- PWC34958-1 P&W Borescope Guide Tube
Borescope Guide Tube for Pratt & Whitney Engines
- PT6A-38
- PT6A-41
- PT6A-41
- PT6A-42
- PT6A-45
- PT6A-50
USA Borescopes offers a number of borescopes and borescope inspection kits. Pratt & Whitney. PT6A owners can check their engine’s maintenance manual for the recommended borescope guide tube part number.
Unfortunately, there is not a ‘one size fits all’ Pratt & Whitney Engine borescope guide tube. Although one borescope guide tube can be used on several different P&W Engines. For example, the PWC34910-200 Borescope Guide Tube can be used on PT6-10, PT6-20 and PT6-21 engines.
Most of the Pratt & Whitney guide tubes are rigid and constructed of metal. However, there are some flexible and articulating borescope guide tubes available as well.
- PWC No. 34910-200 (for engines PT6A-10 to PT6A-36 and -110 to -135A)
- PWC No. 34910-400 (for engines PT6A-38 to PT6A-50)
- PWC No. 34910-600 (for engines PT6A-60 to PT6A-67)
- PWC72835 (for engines PT6A-140A)
