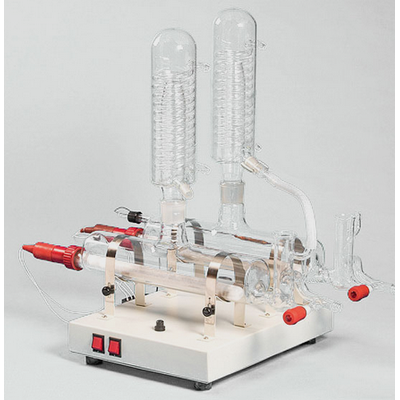

iGene Labserve - Borosilicate Glass Double Distillation Unit
Borosilicate condenser and boiler are fitted with a removable silica sheathed heater and screw threaded connectors for ease of cleaning.
Most popular related searches
cooling water
borosilicate glass
water cooling
boiler condensate
water cooled condenser
water boiler
water heating
condensate analysis
- Borosilicate condenser and boiler are fitted with a removable silica sheathed heater and screw threaded connectors for ease of cleaning.
- Distillate temperature is approx. between 25º to 45º C which is ensured by an efficient condenser.
- The stand is powder coated for rust free operation and lustrous appearance.
- The unit automatically switches off if water level in the boiler falls below heater.
- Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
- Drain nozzle/ Teflon Stop Cork is provided for easy cleaning and maintenance.
- Electrical Power : 220/240 V, 50/60Hz, Single Phase Supply.
- Specific Conductivity: 0.8-1 μs/cm
- Biological Activity (distillate quality): Pyrogen Free
- Organic Matter: Nil
- Total Solids: 0.1 mg/ltr
- Silica: <0.01 mg/ltr
- Output Capacity (Approx.): 2.5 – 4 Ltr/hr
- Power Rating (Total): 6 KW
- Cooling Water Consumption (Approx.): 150 Ltr/Hr
