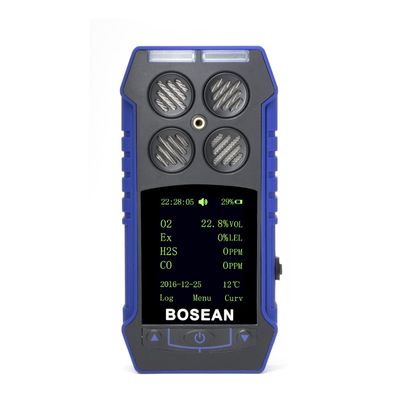

Bosean - Model BH-4S -Portable Multi-Gas Detector
BH-4S portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’life and avoid damage on the relevant equipments.
Most popular related searches
portable multi-gas detection
multi-gas detection system
portable multi-gas
portable gas detection system
gas detection system
multi-gas
portable gas
gas sampling method
toxic gas
water proofing
- Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.
- 32-bit built-in MCU, high reliability and self-adaptation ability.
- Full functions, easy operation.
- CSTN colorful LCD, more intuitionistic, abundant and clear indication.
- Compact design, easy carrying.
- High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
- 500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.
Products Details
- Gas sampling method: Natural diffusion

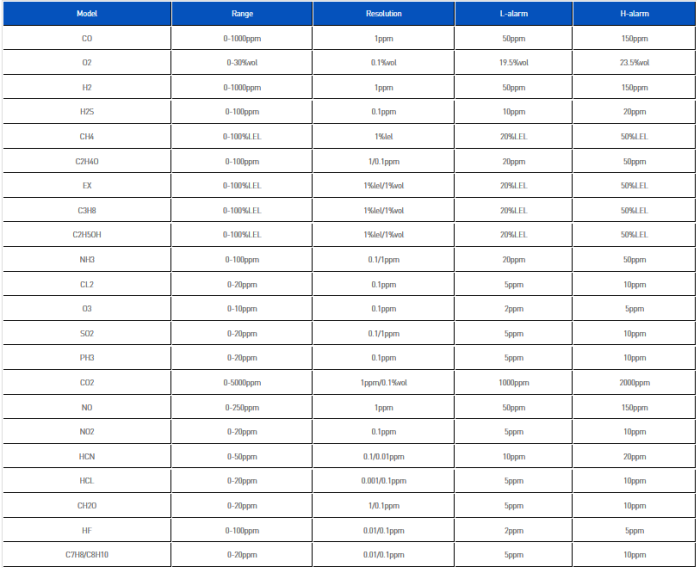

- Detecting gas: Combustible gas, H2S, CO, O2
- Accuracy: ±5% F.S.
- Response Time: 30s
- Indication: LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage.
- Working environment: -20?~50? for toxic gases; -40?~70? for Ex
- Power Source: DC3.7V Li-on battery, 1800mAh
- Charging time: 6h~8h
- Working time: 8h continuously (without alarming)
- Gas Sensor Life: 2 years
- Explosion-proof grade: Ex ib IIB T3 Gb
- Protection Grade: IP65
- Weight: Appr. 400g (with battery)
- Dimensions: 130mm×67mm×30mm(L × W × H)
