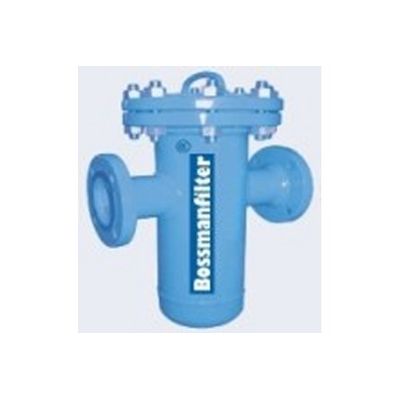

Bossmanfilter - Model B1500 LS and SW Series - Inline Strainer
From Strainer
Bossmanfilter B1500 LS and SW Series Fabricated In-Line Basket Strainer housings effectively remove dirt, pipe scale, and other contaminants from process liquids such as water, chemical and petroleumproducts. Standard housing material is either 316 Stainless Steel or Carbon Steel. Housings come equiped with a standard 1/8' perforated Stainless Steel basket.
-
Most popular related searches
Details
These strainers are necessary to provide protection for metering systems against dirt and other foreignmaterial. The large screen area and streamlined flow path minimize pressure drop.The sturdy basket can withstand a 3.3 bar differential pressure without bursting and is easily removed for cleaning.
Many features of these strainer housings can be customized such as material of construction, closure style, pressure rating, connection style and size, and optional support legs. Other perforation sizes or mesh lined baskets are also available.
- Streamlined Flow Path - For lower pressure drop.
- Large Screen Area - For less frequent cleaning.
- Separable Inner Basket - For easy cleaning.
- Standard Specifications
- Design and Fabrication
- Fabricated according to ASME,DIN / EN specifications.
- Temperature Range
- -29C to +65C with Buna-N Sealing.
Body Material
- Carbon steel to EN Standard.
Flanges
- Carbon steel raised face according to DIN/EN or ANSI B16.5.
Supports
- Three (3) legs are standard on models 200 to 600 Strainers.
Closure
- Blind flange for models 50-150, as shown in the 'Closures' section below.
- Convexed-Blind Flange (for SW models 200-600).
- Elastomer Seals
- Buna-N.
Basket
- Stainless steel perforated plate 10 mm diameter holes on 13 mm staggered centers.
Air Vent
- 1/2' NPT plugged.
Differential Pressure Taps
- 1/2' NPT plugged.
Options
- Temperature Range -12 to +65C with Viton sealing.
- Temperatures/ Sealings other than specified Consult factory.
- Special Painting - consult factory.
- Swing-Arm Assist - To aid in removal of blind flange covers without the need for lifting equipment (recommended for high pressure and/or large/heavy strainer covers).
- Air Release Kit - For static air elimination.
- Differential Pressure Gauge Kit - with isolation valves to monitor basket cleanliness.
- Inner Liner - Choice of 10, 20, 40, or 80 mesh stainless steel.
Applications:
- Water supply systems.
- Cooling water.
- Waste water.
- Fuel oil,crude oil.
- In : oil refinery ,power plant,steel mill ,
- pulp and paper,etc.
