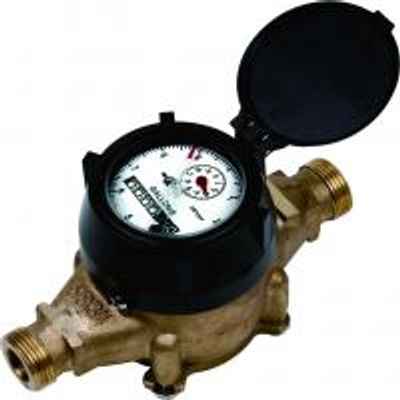

Kat - Model AWWA C708 -Bottom Load Multi Jet Dry Dial Water Meter

The meter are multi-jet dry type meter with copper tin register. Magnetic drive with lower transmission resistance. Copper tin register and heat-treated glass used to eliminate dirt and moisture.  AWWA-15MB advantage:inserts can be adjusted by outter regulator without opening meter. The dial has a straight-reading odometer type display and a 360° center pointer,triangle sensitive star for low flow and leakage detector. The lid can be opened more than 180° for easy reading. Inlet strainer protects the measuring elements from damage. The meter body is made of non-lead bronze. The meter body with threaded ends has wrench pads for easy installation. The meter body with flanged ends has a test port to permit in-line testing.
