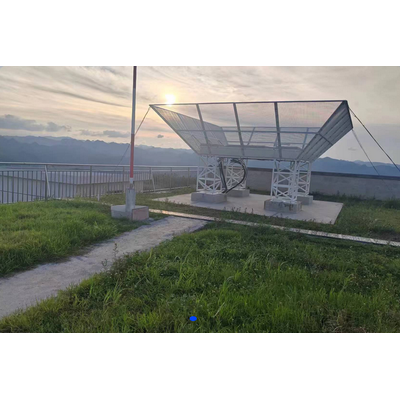

Metstar - Model TWP3 -Boundary Layer Radar Wind Profiler
The wind Profiling radar system plays an important role in short-term weather forecasting, airport air traffic safety, missile and shell control, weather modification, and meteorological scientific research.
Most popular related searches
wind profiling
wind profiling radar
radar wind profiling
wind speed monitoring
wind monitoring
wind profiling system
scientific research
pulse-doppler
radar system
weather forecasting
TECHNICAL DATA: TWP3
- Technology: L-band fully coherent pulse Doppler system
- Operating frequency: 1290MHz/1360MHz
- Height of detection- maximum: ≥3Km
- Height of detection- minimum: ≤100m
- Measurement range: Wind speed measurement range: 0~60m/s, Wind direction measurement range: 0~360°
- Measuring error (root-mean-square deviation): Wind speed measurement error: <1.5m/s, Wind direction measurement error: <10°
- Height resolution: 60m/120m
- Time resolution: ≤6 mins
- Radial velocity resolution: ≤0.2 m/s
- Accuracy of wind speed measurement: <1.5 m/s (RMS)
- Accuracy of wind direction measurement: <10° (wind speed >5m/s)
- MTBF: >4400 hours
