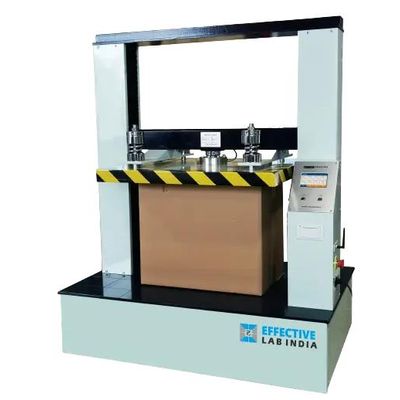

Effective - Model ELI-BCT -Box Compression Tester
A box compression tester is a device used to assess the compression strength and durability of corrugated boxes and packaging materials. It measures the maximum load a box can withstand before deformation or failure occurs. The testing process involves subjecting the box to vertical pressure, simulating the conditions it may face during stacking or transportation. The results help manufacturers and packaging professionals ensure that their boxes meet industry standards and can withstand the rigors of the supply chain. Box strength testers play a crucial role in quality control, ensuring that packaging materials provide sufficient protection for the products they contain.
In delivery, numerous corrugated and non-corrugated boxes are used. They are subjected to a lot of vertical loads while loading or transporting. While transporting, a frictional force may damage the box and the material inside the boxes. So, to reduce the risks of damage, it is vital to test the compression strength of a cardboard box. This strength is evaluated by using an equipment known as a Box Compression Tester. Let us dive into the details of a box compression tester.
Box compression tester is a testing equipment used for testing the strength of boxes/ cartons. It is designed for testing compressive strength on boxes according to international standards. The capacity of a material to withstand a load which tends to reduce size is termed compressive strength. So, a compression test is done for the measurement of compressive resistance and deformation of finished packages.
Measure Uses.
- It is used to measure the maximum load of a box.
- It is used to ensure that a box can withstand the pressure and weight during shipping.
- It is used for the prevention of damage to the products inside the boxes.
A box compression tester has the following capabilities
- Adjustable limit switch.
- Up to 400 mm/min testing speed.
- Sensors have three forces.
- Automatic detection of stop after break.
- Automatic return of plate after test.
- Digital controls and display.
- Microprocessor-driven display for precise test outcomes
- Extremely precise test findings with consistent compression force
- TARE and peak hold capability
- Over travel safety
- Powerful base plate with a tough construction
- Brilliant LED display
- Feather Touch Controls
- Various platform sizes and load cell capacities are available for the computerized model
- Optional printer facility
- Type: Compression
- Capacity: 500 Kgf
- Display: LED (Digital)
- Accuracy: ± 2% full scale (with master load).
- Least Count: 200 gm
- Power: 220V, Single phase, 50 Hz
- Test Platform Size : 450 * 450 mm
- Test Speed: 12.5 ± 2.5 mm/min
- Motor: 1 HP Three Phase, 1350 rpm
- Standard: ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, and JIS Z0212
