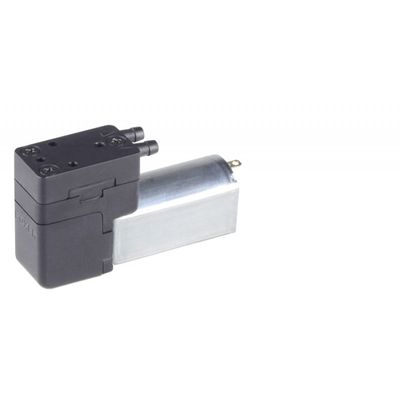

Boxer - Model E -Iron Core Motor

Free Flow at 8.0 V: 500 ml/min
Free Flow at 6.5 V: 350 ml/min

Max Pressure: 800 mbar
Max Vacuum: -500 mbar

Power Consumption at 8.0 V: 0.48 to 1.28 W
Power Consumption at 6.5 V: 0.32 to 0.98 W

Motor Termination: Solder tags

Operating Temperature Range: 5 to +60 °C
Operating Humidity Range: 5 to 95% RH

Elastomers Options: EPDM
Other Wetted Parts: PPS (Polyphenylene Sulphide)
Tube Connection: 3.0 mm barb for 2.0 to 2.5 mm ∅ tubing
Weight: 22g
