Boyuan - Black Geocell

• After-sale   Service  Online Technical Support
• Place of   Origin  Shandong, China

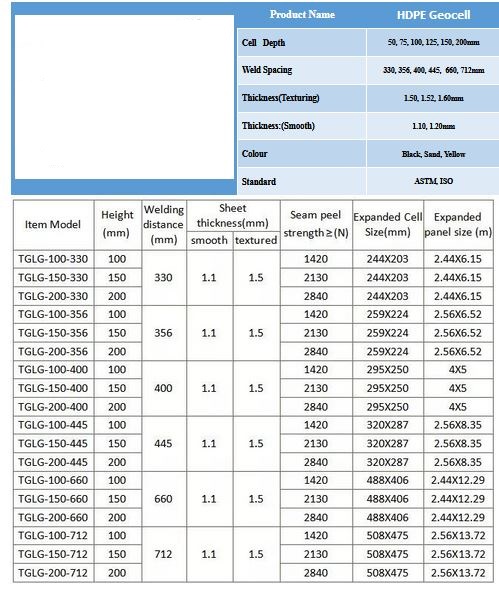

• Product   name  HDPE Geocell
• Polymer  HDPE
• Color  Black, Yellow, Brown, Green, etc.
• Thickness   (Smooth)  1. 1 or 1.2mm
• Thickness   (Textured)  1.5mm
• Cell depth  75-100-150-200mm
• Weld   spacing  330-356-400-445-500-660-711mm
• Peel   strength of welding point 1000N or 1420N/10CM

Introduction

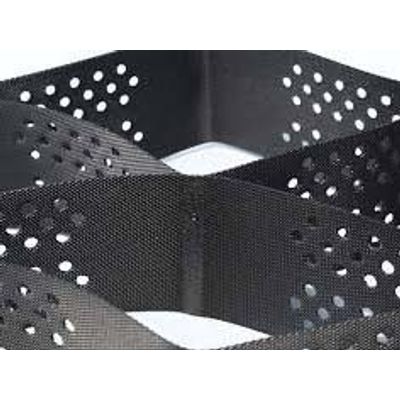

Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which the materials are placed and compacted. This creates a free-draining system that holds the materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular reinforcement systems improve the structural and functional behavior of soils.
