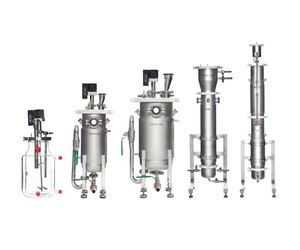

BPC -Â Model Bioreactor Series -CSTR/UASB/EGSB/IC bioreactors for biogas labs
Our modular, robust CSTR and high-rate anaerobic bioreactors (UASB, IC, EGSB) are built using high-quality materials in order to meet the demands of biogas labs. Intended for anaerobic fermentation tests, both for continuous and batch mode operations, the flexible design and user-friendly functionality makes them the ideal experiment platform for simulating full-scale fermentation processes at a laboratory scale.
Our bioreactors are:
- Resistant to leakage and corrosion
- Flexible, modular design
- Easy to run and maintain
- Available in five different sizes and six configurations
- Stainless steel and glass options
Moreover, each bioreactor is fully compatible with the BioReactor Simulator® and µFlow® for simulating biological fermentation processes where gas flow measurement is needed. Read more
Bioreactors - General Features
Wall jacket configuration for independent heating or cooling
- Reactor lid and connection points with tri-clamp configuration for easy assembling and disassembling
- Double view port configuration for all stainless steel reactors
- Flexible feedstock inlet port for both low and high solid content feedstocks
- Sampling port for on-line pH, ORP and temperature monitoring
- Slurry discharging port with ball valve for all stainless steel reactors
- Self-discharging port for digested slurry with automatic slurry level control for all stainless steel reactors
UASB/EGSB-20S
Reactor type: Upflow Anaerobic Sludge Blanket (UASB) and Expanded Granular Sludge Blanket (EGSB) reactor
Volume: 20 l
Materials: high quality stainless steel (AISI 316)
Design: modular design for easy installation and maintenance
Viewing points: two sight glass windows for visualisation
Sampling ports: two sampling ports reserved for on-line process monitoring
Support frame: Self-supporting frame in stainless steel for easy system setup
Temperature control: external thermal circulator
Dimension: H 150 x L 60 x W 60 cm
Weight: 22 kg
Usage: indoor applications
IC-20S
Reactor type: Internal Circulation (IC) reactor
Volume: 20 l
Materials: high quality stainless steel (AISI 316)
Design: modular design for easy installation and maintenance
Sampling ports: four sampling ports reserved for on-line process monitoring
Support frame: self-supporting frame in stainless steel for easy system setup
Temperature control: external thermal circulator
Dimension: H 180 x L 50 x W 50 cm
Weight: 25 kg
Usage: indoor applications

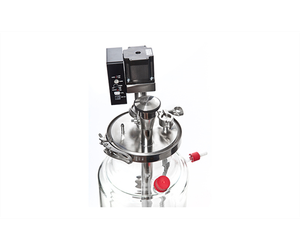

CSTR-5G
- Reactor type: CSTR
- Volume: 5 l
- Materials: High quality glass (reactor body) and stainless steel (reactor lid) (AISI 316)
- Mixing in the reactor: Multifunctional agitation system with Brushless DC Motor for long-life operation. Remote speed and on/off control via analogue voltage signal (0-12 VDC). Manually adjustable speed, direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 0-300 rpm.
- Temperature control: external
- Dimension: H 38 x W 24 cm
- Weight: 7.8 kg
- Usage: Indoor applications
CSTR-5S
- Reactor type: CSTR
- Volume: 5 l
- Materials: High quality stainless steel (AISI 316)
- Mixing in the reactor: Multifunctional agitation system with Brushless DC Motor for long-life operation. Remote speed and on/off control via analogue voltage signal (0-12 VDC). Manually adjustable speed, direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 0-300 rpm.
- Temperature control: External
- Dimension: H 74.5 x W 28.5 cm
- Weight: 12.8 kg
- Usage: Indoor applications
CSTR-10S
- Reactor type: CSTR
- Volume: 10 l
- Materials: High quality stainless steel (AISI 316)
- Mixing in the reactor: Multifunctional agitation system with Brushless DC Motor for long-life operation. Remote speed and on/off control via analogue voltage signal (0-12 VDC). Manually adjustable speed, direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 0-300 rpm.
- Temperature control: External
- Dimension: H 77.5 x W 32.5 cm
- Weight: 16.5 kg
- Usage: Indoor applications
CSTR-2G
- Reactor type: CSTR
- Volume: 2 l
- Materials: High quality glass (reactor body)
- Mixing in the reactor: Multifunctional agitation system with Brushless DC Motor for long-life operation. Remote speed and on/off control via analogue voltage signal (0-12 VDC). Manually adjustable speed, direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 0-300 rpm. This reactors package contain six reactors and one thermo incubator, which is a part of the BioReactor Simulator. However, the single reactor or multiple reactors with agitators can be purchased separately as well.
- Temperature control: External
- Dimension:
- Weight:
- Usage: Indoor applications
Please feel free to contact us or visit our bioreactors product page for more information.
