Overview
Our Process monitoring systems offers you:
- Less labour demand
- Standardised data handling for easier comparison
- Plug-and-play and easy to operate
- Flexible and modular; designed to fit individual demands

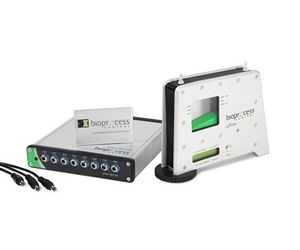

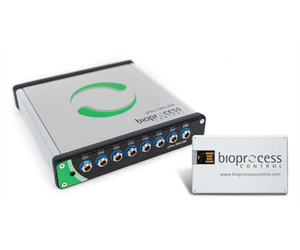

µFlow Data Logger
The µFlow Data Logger comes with a computer-based software application specifically designed for monitoring and logging any gas measured by a maximum of eight µFlows, or from any other in-line gas flow meter with 4-20 mA signal output. You get a direct visualisation of any variations in gas flow. Set up an experiment, monitor its progress and download results with little effort. All data is in a format that allows for easy analysis.
- User-defined signal scale
- Automatic logging of the gas flow rate
- Real-time signal and historical trend display
- Report generation with four selectable time intervals
- Unlimited logging of data points
- Software running on an external computer
- Supported operating systems: Windows 10/8/7/Vista (32-bit and 64-bit)
- USB interface
- Plug-and-play signal connection with shielded signal cable
- Data acquisition software installation USB key and software licence included
- Power supply: 24 V DC / 1.0 A
- Dimension: 170 x 167 x 34 cm
- Usage: Indoor

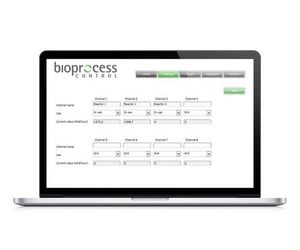

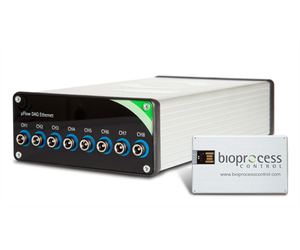

Universal Data Logger
The Universal Data Logger has a software application designed for logging active and passive analog signals from different in-line sensors for gas flow, pH/ORP, gas composition, etc. Set up an automated process monitoring system with several different types of in-line sensors, define and customise measurement scale for each type of process parameter. The software supports up to five different types of process parameters and up to eight independent measuring channels.
- User-defined signal scale for each type of process parameter
- Support up to eight independent in-line sensors for simultaneous real-time data acquisition
- Automatic logging of process signals
- Real-time signal and historical trend display
- Report generation with four selectable time intervals
- Unlimited logging of data points
- Software running on an external computer
- Supported operating systems: Windows 10/8/7/Vista (32-bit and 64-bit)
- Ethernet interface
- Plug-and-play signal connection with shielded signal cable
- Data acquisition software installation USB key and software licence included
- Power supply: 24 V DC / 1.0 A
- Dimension: 228 x 125 x 53 mm
- Usage: Indoor

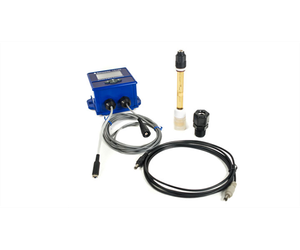

In-line pH Monitoring Set
- H2S resistant flat-surface pH electrode (0-14) for measuring slurries, sludge and viscous samples, as well as those containing suspended solids
- pH transmitter with display and 4-20 mA signal output
- Shielded electrode signal cable
- Shielded signal cable for data logger
- Electrode mounting gland for in-line applications
- Signal connection with shielded cable
- Power supply: Powered through data logger or 12-24 VDC, max 600 Ohm load
- Usage: Laboratory applications
In-line ORP Monitoring Set
- Flat-surface ORP electrode (0-2000 mV) for measuring slurries, sludge and viscous samples, as well as those containing suspended solids
- ORP transmitter with display and 4-20 mA signal output
- Shielded electrode signal cable
- Shielded signal cable for data logger
- Electrode mounting gland for in-line applications
- Signal connection with shielded cable
- Power supply: Powered through data logger or 12-24 VDC, max 600 Ohm load
- Usage: Laboratory applications

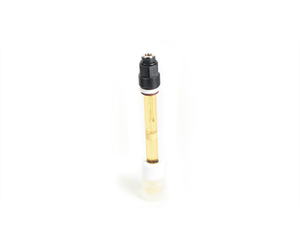

Submersion and In-line pH Electrode
- Measuring range: 0-14 pH
- Comb pH electrode, Din 13.5 mm cap
- Flat measurement tip for surface measurements
- Double junction electrode design prevents reference contamination
- High H2S resistance and suitable for measuring slurries, sludge and viscous samples, as well as those containing suspended solids
- Double junction electrode design prevents reference contamination
- Durable Ultem body offers enhanced chemical compatibility and booted BNC protects meter connection.
- Dimension: 150 mm (length), 12 mm (diameter)
- Usage: Laboratory applications

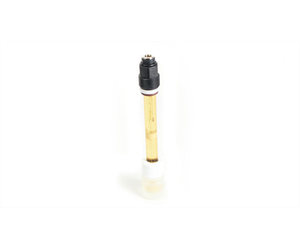

Submersion and In-line ORP Electrode
- Measuring range: ± 2000 mV for ORP models
- Comb ORP electrode, Din 13.5 mm cap
- Temperature range: 0-100 oC
- Flat measurement tip for surface measurements
- Double junction electrode design prevents reference contamination
- High H2S resistance and suitable for measuring slurries, sludge and viscous samples, as well as those containing suspended solids
- Durable Ultem body offers enhanced chemical compatibility and booted BNC protects meter connection.
- Dimension: 150 mm (length), 12 mm (diameter)
- Usage: Laboratory applications

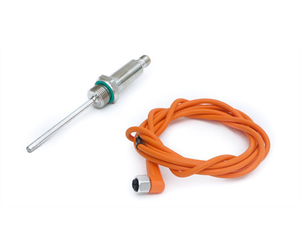

In-line Temperature Probe
- Pt 1000 (DIN EN 60751, class A)
- Measuring range: -50 to 150 oC
- Resolution: 0.04 oC
- Precision analogue output: ± 0.3 + (± 0.1 % MS)
- Analogue current output: 4-20 mA
- Operating voltage: 18-32 VDC
- Materials: stainless steel (316L); O-ring: FKM
- Weight: 128.5 g
- Probe diameter: 6 mm
- Installation length EL: 100 mm
- Usage: Indoor

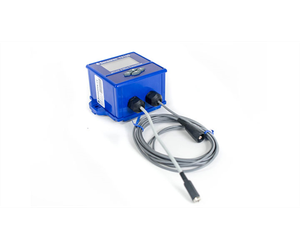

pH / ORP transmitter
- Measuring range (pH): 0-14 pH, 0.01 pH resolution, ± 0.01 accuracy
- Measuring range (ORP/mV): -1999 mV-1999 mV, 1 mV resolution, ±2 mV accuracy
- Temperature range: -20 - 110oC, 0.1oC resolution
- Current output range:4-20 mA, 0.01 mA resolution, ±0.005 mA accuracy, 500 V input/output isolation
- Temperature input: 2-wire PT1000 RTD with automatic compensation
- Power requirement: Powered through data logger or 12-24 VDC, max 600 Ohm load
- Max sensor to transmitter distance: 9 meters
- Mounting options: wall, panel, din rail, and pipe
- Dimension: 99 mm (H) x 99 mm (W) x 75 mm (D)
- Weight: approximately 0.45 kg
- Usage: Indoor

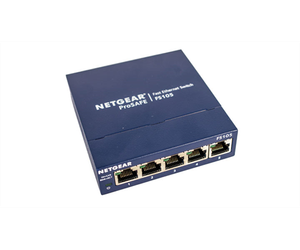

Fast Ethernet Desktop Switch to connect 4 instruments
The analytical capacity for AMPTS II, AMPTS II Light and Gas Endeavour can easily be expanded by connecting multiple instruments with a network switch. With this configuration, each individual instrument becomes modularised device. The connected instruments are easily controlled through a single web browser interface, and can be accessed with a computer, tablet or smart phone.
- Number of ports: 5
- Speed: 10/100 Mbps Fast Ethernet
- Unmanaged
- Power supply: 7.5 VDC, 1 A
- Dimension: 94 x 101 x 27 mm
- Weight: 0.275 kg
- Usage: Indoor

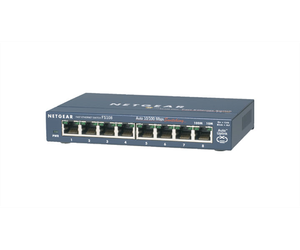

Fast Ethernet Desktop Switch to connect 7 instruments
- Number of ports: 8
- Speed: 10/100 Mbps Fast Ethernet
- Unmanaged
- Power supply: 7.5 VDC, 1 A
- Dimension: 158 x 105 x 27 mm
- Weight: 0.650 kg
- Usage: Indoor
More information about Process Monitoring systems
Please feel free to contact us or visit our process monitoring product page for more information.
