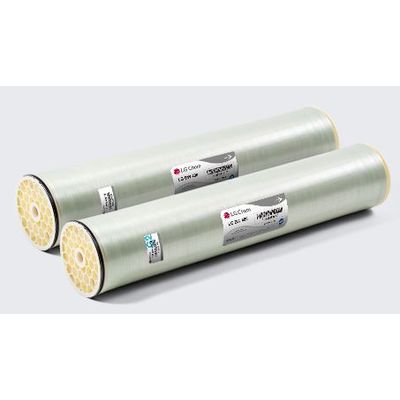

LG - Model BW 2540 UES -Brackish Water Reverse Osmosis Membrane (BWRO)

FromLG Chem Water Solutions Ltd

SHARE

Ultra Low Energy | LG BW UES membranes offer high permeability at ultra-low feed pressure, significantly reducing operating costs: suitable for low salinity brackish water applications.

Most popular related searches

brackish reverse osmosis

water reverse osmosis

reverse osmosis BWRO

reverse osmosis membrane

reverse osmosis

brackish water membrane

reverse osmosis water

Active Membrane Area: 22 ft² (2.0 m²)
Permeate Flow Rate: 800 gpd (3.0 m³/d)
Stabilized Salt Rejection: 99.0%
Minimum Salt Rejection: 98.0%
Feed Spacer: 28 mil

NaCl: 500 ppm
Pressure: 100 psi (6.9 bar)
Temperature: 25°C (77°F)
pH: 7
Recovery: 15%
Permeate Flow Variation: -15%

Max. Operating Pressure: 600 psi (41 bar)
Max. Chlorine Concentration: <0.1 ppm
Max. Operating Temperature: 45°C (113°F)
pH Range, Continuous (Cleaning): 2-11 (2-12)
Max. Feedwater Turbidity: 1.0 NTU
Max. Feedwater SDI (15 minutes): 5.0
Max. Feed Flow: 6 gpm (1.4 m³/h)
Max. Pressure Drop for Each Element: 15 psi (1.0 bar)

Length: 1016 mm (40 inch)
Element O.D.: 60 mm (2.4 inch)
Permeate Tube O.D.: 19 mm (0.75 inch)
Weight: 1.9 kg (4.2 lbs.)
Core Tube Extension: 32 mm (1.3 inch)
