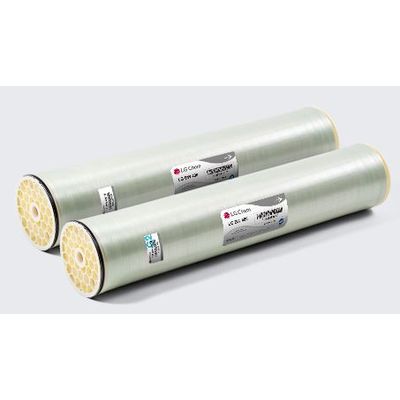

LG - Model BW 440 UES -Brackish Water Reverse Osmosis Membrane (BWRO)

FromLG Chem Water Solutions Ltd

SHARE

Ultra low energy membrane with increased membrane area for higher productivity | LG BW 440 UES membrane elements, with increased active membrane area, deliver high permeability at very low feed pressures for ultra-low energy savings. Ideal applications include brackish feed water with low salinity.

Most popular related searches

brackish reverse osmosis

water reverse osmosis

reverse osmosis BWRO

reverse osmosis membrane

reverse osmosis

brackish water membrane

reverse osmosis water

Active Membrane Area: 440 ft² (41 m²)
Permeate Flow Rate: 12,650 gpd (47.9 m³/d)
Stabilized Salt Rejection: 99.0%
Minimum Salt Rejection: 98.0%
Feed Spacer: 28 mil

NaCl: 2,000 ppm
Pressure: 125 psi (8.6 bar)
Temperature: 25°C (77°F)
pH: 7
Recovery: 15%
Permeate Flow Variation: -20%

Max. Operating Pressure: 600 psi (41 bar)
Max. Chlorine Concentration: <0.1 ppm
Max. Operating Temperature: 45°C (113°F)
pH Range, Continuous (Cleaning): 2-11 (2-12)
Max. Feedwater Turbidity: 1.0 NTU
Max. Feedwater SDI (15 minutes): 5.0
Max. Feed Flow: 75 gpm (17 m³/h)
Max. Pressure Drop for Each Element: 15 psi (1.0 bar)

Length: 1,016 mm (40 inch)
Element O.D.: 200 mm (7.9 inch)
Permeate Tube I.D.: 28.6 mm (1.125 inch)
Weight: 16 kg (35 lbs.)
