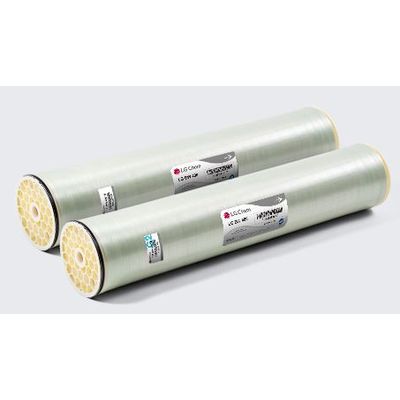

LGModel BW 400 UES -Brackish Water Reverse Osmosis Membrane (BWRO)

SHARE

Ultra low energy membrane equipped with fouling tolerant low dP spacer technology | LG BW 400 UES membrane elements deliver high permeability at very low feed pressures for ultra-low energy savings. The RO element also incorporates a unique proprietary feed spacer technology for reducing differential pressure. The results are excellent anti-fouling properties and lower cleaning frequency, chemical use, energy consumption, and total cost of plant ownership. Ideal applications include brackish feed water with low salinity.

Most popular related searches
  • Active Membrane Area: 400 ft² (37 m²)
  • Permeate Flow Rate: 11,500 gpd (43.5 m³/d)
  • Stabilized Salt Rejection: 99.0%
  • Minimum Salt Rejection: 98.0%
  • Feed Spacer: 34 (low dP) mil
  • NaCl: 2,000 ppm
  • Pressure: 125 psi (8.6 bar)
  • Temperature: 25°C (77°F)
  • pH: 7
  • Recovery: 15%
  • Permeate Flow Variation: -20%
  • Max. Operating Pressure: 600 psi (41 bar)
  • Max. Chlorine Concentration: <0.1 ppm
  • Max. Operating Temperature: 45°C (113°F)
  • pH Range, Continuous (Cleaning): 2-11 (2-12)
  • Max. Feedwater Turbidity: 1.0 NTU
  • Max. Feedwater SDI (15 minutes): 5.0
  • Max. Feed Flow: 75 gpm (17 m³/h)
  • Max. Pressure Drop for Each Element: 15 psi (1.0 bar)
  • Length: 1,016 mm (40 inch)
  • Element O.D.: 200 mm (7.9 inch)
  • Permeate Tube I.D.: 28.6 mm (1.125 inch)
  • Weight: 16 kg (35 lbs.)
