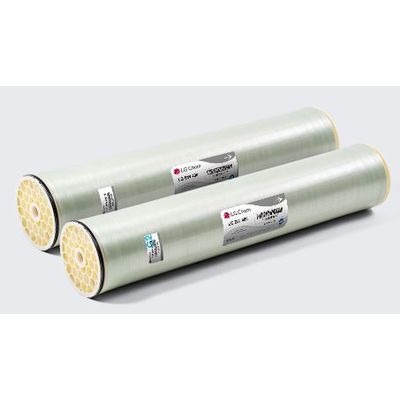

LG - Model BW 400 R G2 -Brackish Water Reverse Osmosis Membranes (BWRO)
Anti-Fouling, Superior Rejection, High Flow, High Durability. Equipped with fouling tolerant low dP spacer technology | LG BW 400 R G2 membranes offer a combination of enhanced fouling resistance, high rejection, flow, durability and reduce total cost of ownership: suitable for high salinity brackish water and wastewater reuse applications with a challenging feed water. LG BW 400 R G2 membranes incorporate state-of-the-art feed spacer technology, which can greatly reduce differential pressure and cleaning frequency.
Most popular related searches
BWRO membrane
brackish reverse osmosis
BWRO
water reverse osmosis
reverse osmosis BWRO
reverse osmosis membrane
brackish water
reverse osmosis
brackish water membrane
reverse osmosis water
Product Specifications
- Active Membrane Area 400 ft² (37 m²)
- Permeate Flow Rate 11,500 gpd (43.5 m³/d)
- Stabilized Salt Rejection 99.78%
- Minimum Salt Rejection 99.65%
Test Conditions
- NaCl 2,000 ppm
- Pressure 225 psi (15.5 bar)
- Temperature 25°C (77°F)
- pH 7
- Recovery 15%
- Permeate Flow Variation +/-15%
Operating Specifications
- Max. Operating Pressure 600 psi (41 bar)
- Max. Chlorine Concentration
- Max. Operating Temperature 45°C (113°F)
- pH Range, Continuous (Cleaning) 2-11 (1-13)
- Max. Feedwater Turbidity 1.0 NTU
- Max. Feedwater SDI (15 minutes) 5.0
- Max. Feed Flow 75 gpm (17 m³/h)
- Max. Pressure Drop for Each Element 15 psi (1.0 bar)
Product Dimensions
- Length 1,016 mm (40 inch)
- Element O.D. 200 mm (7.9 inch)
- Permeate Tube I.D. 28.6 mm (1.125 inch)
- Active Membrane Area 400 ft² (37 m²)
- Weight 16 kg (35 lbs.)
- Feed Spacer 34 (low dP) mil
