Brainlab - Merging Surface & X-Ray Tracking System

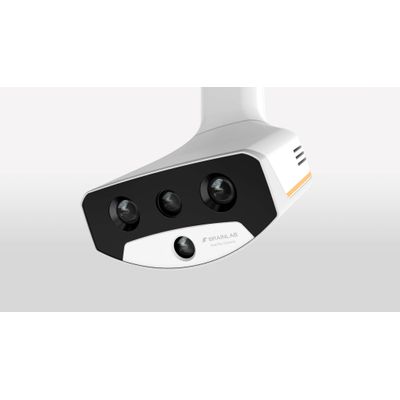

Thermal surface tracking: The 4D Thermal Camera creates a highly accurate and reliable hybrid thermal surface by correlating the patient’s heat signature to their reconstructed 3D surface structure. To achieve this, 300,000 3D surface points are acquired and matched to the heat signal generated by the thermal camera, creating another dimension to track their position.
Advanced X-Ray monitoring*
Larger panels show more anatomy for easier orientation and interpretation of X-Ray images. At the same time, improved soft tissue contrast and enhanced read-out speed prevent motion blurring effects. Thanks to higher heat capacity, ExacTrac Dynamic X-Ray tubes support more automated, high frequency imaging.
Integration for greater automation*
Deep integration with Elekta Versa HD™ in combination with Hexapod™ and Varian Edge™ or TrueBeam™ with Perfect Pitch™ enable automated beam hold—repositioning and restarting treatment—from the linac console. Based on the indication, protocol or patient, X-Rays can be automatically or manually triggered for greater freedom.
What types of radiation therapy treatments can be performed using ExacTrac Dynamic?
ExacTrac Dynamic allows you to position and monitor all your SRS, SBRT, and conventional radiotherapy patients. Learn more about the variety of indication-specific workflows, such as cranial and spine SRS and SBRT, and Deep Inspiration Breath Hold (DIBH)**.
