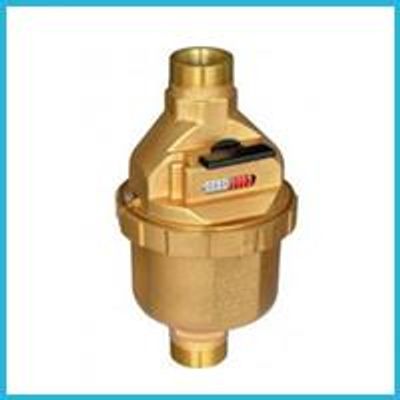

NWM - Model PD-LFC-B -Brass Body Volumetric Liquid Filled Meter with Remote Cable
NWM PD-LFC (B) is Piston Displacement (Volumetric) water meter with mechanical transmission, liquid sealed register has the sizes from Dn15 to Dn40 designed by NWM and meets to the requirements of Directive 2004/22/EC on measuring instruments; the European Standard EN14154+A1+A2: Water Meter; the International Organization of Legal Metrology OIML R-49: 2006(E): Water meters intended for the metering of cold potable water and hot water.
Most popular related searches
water metering
water meter
volumetric water meter
piston water meter
non-return valve
cold water meter
drinking water
rotary piston
displacement water meter
water meter standard
- MID Certificated TCM142/10-4759
- WRAS approved
- Super dry register with high sensitivity as maximal Class D /R400
- Available to install in any position
- Directly reading
- Grooved piston as option
- All the components are produced with high resistance and quality materials, technical plastics and stainless steel parts;
- Cold water meter under current standard for lower than 30℃(T30), but NWM PD-LFC (B) can be used safely in water temperature up to 50℃(T50);
- The rollers are protected by special liquid don’t touch with the water which ensures the clear reading in any operating conditions;
- The mechanical transmission movement with the maximum reliability; no influence from the external magnetic field;
- Suitable for any position installation;
- Non Return Valve to avoid the reserve flow Rate;
