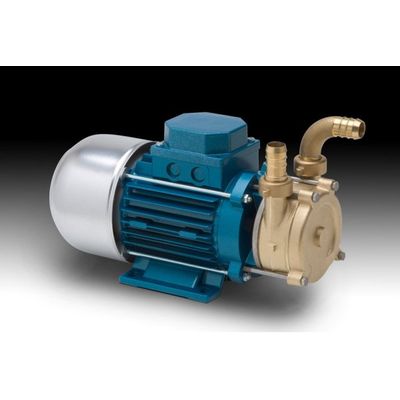

Tellarini - Model ECC 12/20 -Brass Electric Pumps

FromTellarini Pumps

SHARE

The best solution for suction and transfer of liquids, thanks to the strong self-priming capacity and the ability to run even with discontinuous presence of the liquid in the suction. The ECC series, made of brass CB754S with DC motor (12 or 24 Volt) is used when batteries are available as power source.For each application it is necessary to verify the suitability and choose appropriate gaskets.

Most popular related searches

brass pipe fitting

The product are particularly suitable for use:

nautical (bilge, services, cooling, washing, sea water)
agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
transports (tankers, road machines, on board water systems)

Maximum capacity : 28 lt/min
Maximum head : 15 m
Gasket on the shaft: Seal
Maximum priming height : 6 m
Threaded ports: 3/4"
Maximum liquid density 1.1g/cm3 free of hard particles in suspension
Maximum temperature 90°C
Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
Unidirectional pumping flow
Coupling with impeller free
Complete with a pair of brass hose fittings for pipes 20 (one straight and one curved)
Possibility of working for short periods with closed pipes
During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Material

Pump Parts: Brass
Counterflange: AISI 304
Shaft : AISI 316
Impeller : Brass
Gaskets: NBR

MOTOR

Powered with a Dc motor 12V
Equipped with MEC 63 motor (2400 rpm 0.3HP / 0,2 KW)
Service S1
Ip protection degree 23
Power supply connection via terminal board on the motor
