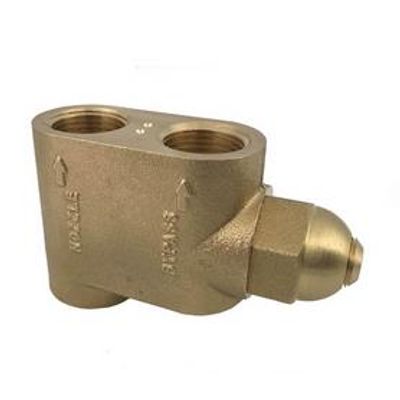

Procon - Model BPV011035FBD -Brass External Bypass Valve
FromProcon US, Inc.
External Bypass Valve Brass, EPDM, Standard-Non External adjust Relief Valve.
Most popular related searches
- Regulates system pressure by diverting a portion of the flow
- Valve can be set between 30 to 59psi (2 to 4 BAR)
- Compact size with a life of High performance and reliability
Technical Information
- Material Brass
- Port Hole NPT 3/8"
- Maximum Operating Flowrate 265GPH (800LPH)
- Elastomer EPDM
- Valve Type Solid- Ultem
- ValveConfiguration Standard-Non External adjust
- Product Weight 0.51lb (0.23Kg)
Operating Range
- Maximum Operating Pressure 30psi
- Relief Valve Set Pressure Range 30 to 59psi (2 to 4 BAR)
- Max Static Pressure PSI 250psi
- Min Operation Fliud Temperature -40°F
- Max Operation Fluid Temperature 294°F
- Max Discharge Pressure 250psi
- Fluid Acidity 6pH
